Body plethysmographs — selection and configuration
Body plethysmographs use an airtight cabin to measure static lung volumes and airway resistance. They complement spirometry testing.
Select equipment and request a quotation
State your method, workload and required options to prepare a comparable quotation.
Body plethysmographs for pulmonary function testing
Compare cabin accessibility, software, calibration and test modules. DLCO testing may require an additional module and test gas. The workstation configuration is selected for the needs of the pulmonary function laboratory.
Compare three body plethysmographs
| Model | Key differences |
|---|---|

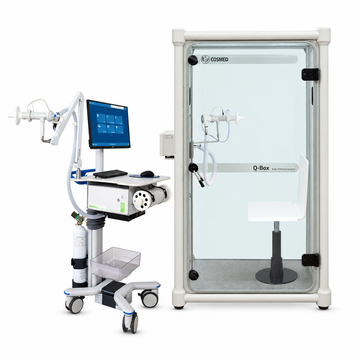

| COSMED Q-Box | Lung volumes and airway resistance; OMNIA; optional DLCO/FOT |

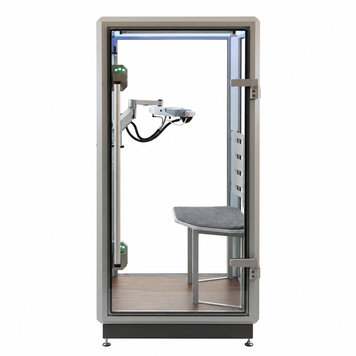

| GANSHORN PowerCube Body+ Basic | Basic spirometry and plethysmography package; SharpFlow and LFX |
| Jaeger Vyntus BODY | 1110 L cabin; bench up to 250 kg; Double Shot and SentrySuite |
Compare equivalent tests, licences, calibration equipment, computers and service. DLCO, provocation and other modules are not automatically included. Request a price for each model’s final supply specification.
Manufacturer information and documents
Check the version, supply region and document revision. A series page may describe options that are not included in the specific configuration.
Configuration, pricing and procurement
For a quotation, specify the required configuration, number of instruments, installation city and services needed. Agree options, consumables, commissioning and staff familiarisation separately. Documentation, delivery times and warranty terms are specified in the quotation and contract. See the model page for its current price or quotation request option.
Questions before selection and procurement
Which models are listed in this category?
COSMED Q-Box · GANSHORN PowerCube Body+ Basic · Jaeger Vyntus BODY.
What is included in PowerCube Body+ Basic?
The manufacturer specifies a standard-size cabin, seated-work trolley, compatible Windows PC with a Full HD display and LFX with basic and plethysmography licences. Diffusion is not included in Basic.
Can tests be performed outside the cabin?
Swivel arms allow some spirometric and other compatible tests outside the cabin. Plethysmographic lung-volume and related resistance measurements require a closed cabin and the manufacturer’s test procedure.
What should a quotation request specify?
Specify tests, patient groups, cabin accessibility, hospital-system interfaces, calibration equipment, consumables, installation, training and service.
