Jaeger Vyntus BODY body plethysmograph

In stock
SKU: Vyntus BODY
  • Jaeger Vyntus BODY body plethysmograph
Description

Jaeger Vyntus BODY is a body plethysmograph for lung-volume and airway-resistance measurements and spirometry. Its 1110 L cabin has a bench rated for up to 250 kg, a low entry step and an adjustable breathing assembly. An ultrasonic sensor and digital pressure compensation operate with the SentrySuite platform.

CABIN VOLUME1110L
BENCH CAPACITY250kg maximum
ARM REACH63cm outside the cabin

Key advantages

  • Absolute lung-volume measurement including TLC, FRCpleth and RV.
  • Airway-resistance assessment alongside spirometric parameters.
  • Double Shot ultrasound technology and online BTPS correction.
  • Digital pressure compensation reduces external influences on measurement.
  • A telescopic arm places the breathing assembly outside the cabin for compatible tests.
  • SentrySuite provides operator guidance, quality control and flexible reports.

Technical specifications

Model Vyntus BODY
Manufacturer Jaeger Medical
Cabin volume 1110 L
Bench capacity Up to 250 kg
Entry step 7 cm, brochure JAE-INT-2500015
Arm reach Up to 63 cm outside the cabin
Flow sensor Ultrasonic, Double Shot
Pressure compensation Digital
Lung volumes TLC / FRCpleth / RV / RV:TLC
Airway resistance sReff / sRtot / Reff / Rtot
Spirometry parameters FVC / FEV1 / FEV1:FVC / PEF
Software SentrySuite
Additional tests DLCO, MIP/MEP, SNIP, P0.1, Rocc and others are optional

Application and configuration

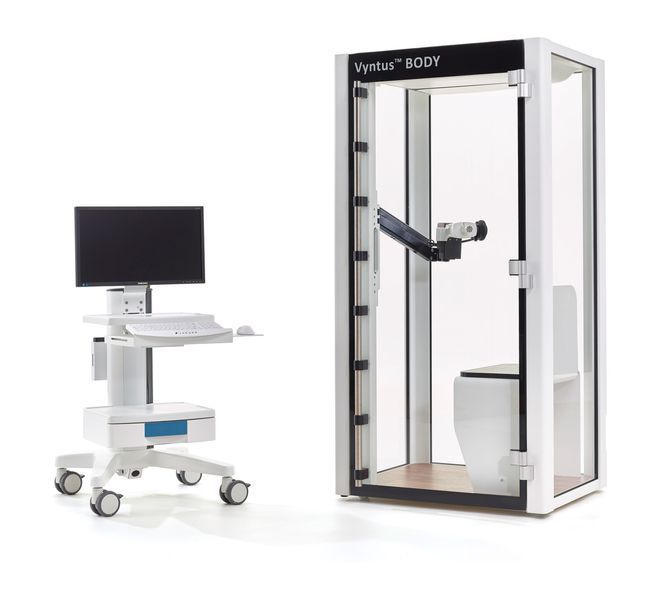

This listing covers body plethysmography and spirometry as the base scope. Diffusion, respiratory muscle tests, rhinomanometry, compliance and Vyntus APS bronchial challenge testing are specified separately. The official brochure image shows the cabin and computer cart; cart height adjustment is optional. The PC, monitor, SentrySuite licences, calibration equipment, MicroGard II, gases, installation and training are defined in the supply specification. The external arm supports compatible tests outside the cabin; it does not imply body plethysmography with the cabin open. Request pricing for the final package.

Body plethysmographs

Compare with: COSMED Q-Box.

Jaeger Vyntus BODY

Price upon request
