TEMPERATURE+2…+8 °C
REFRIGERATOR GROSS VOLUME147 L
VACCINE STORAGE VOLUME110 L
HOLDOVER TIME93.04 h
FREEZER COMPARTMENT50 L
EXTERNAL DIMENSIONS1510 × 750 × 940 mmWidth × depth × height

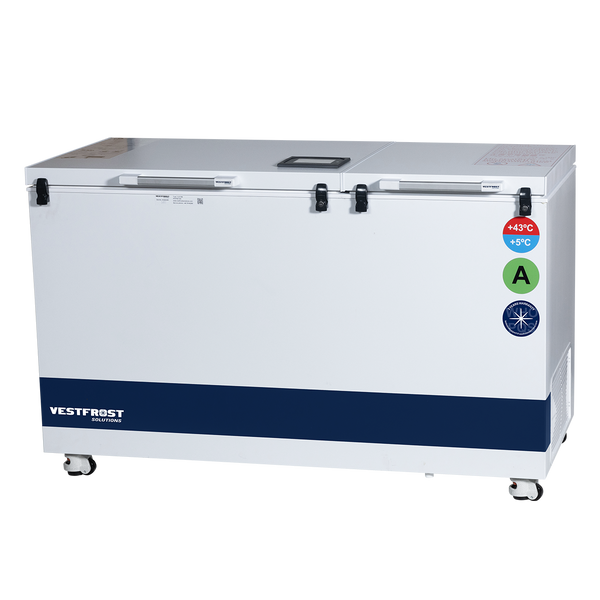

VLS 096Ae RF AC combines an ice-lined vaccine refrigerator with a separate water-pack freezer. It supports vaccine cold-chain storage and icepack preparation, with cold retention during a mains power interruption.
Benefits for vaccine storage
- 110 L for vaccines: a separate refrigerator compartment operating at +2…+8 °C.

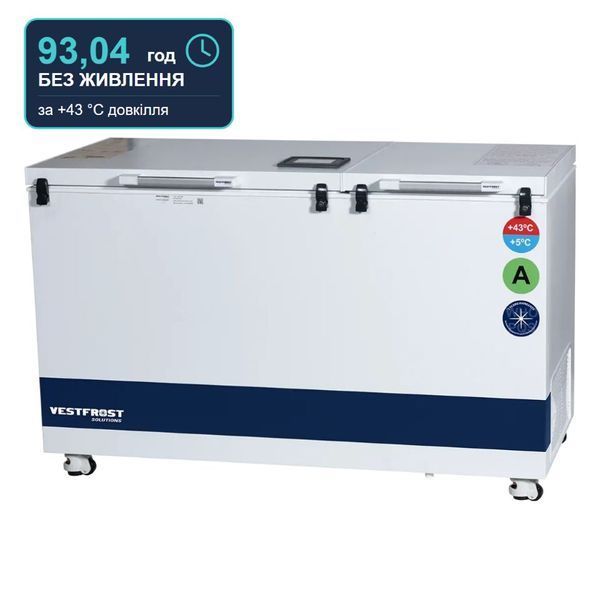

- Ice-lined cooling: stored cooling helps maintain temperature during power interruptions; holdover at +43 °C is 93.04 h.
- Grade A freeze protection: protects vaccines against freezing under the specified operating conditions.
- Separate freezer: 50 L for water-pack preparation, with a freezing capacity of 2.4 kg/24 h.
VLS 096Ae RF AC technical specifications
| Vaccine temperature | +2…+8 °C |
| Refrigerator net / gross volume | 110 / 147 L |
| Freezer compartment | 50 L gross; −15…−25 °C |
| Water-pack freezing capacity | 2.4 kg per 24 hours |
| Water-pack storage | 28 × 0.6 L |
| Holdover at +43 °C | 93.04 hours |
| Vaccine freeze protection | Grade A |
| Power supply | 220–240 V, 50/60 Hz |
| Dimensions W × D × H | 1510 × 750 × 940 mm |
| Net / gross weight | 150 / 190 kg |
| Baskets | 2 |
Monitoring and equipment
Integrated voltage stabilizer, safety thermostat, lock, 10 cm adjustable legs and USB-A 5 V. EMS monitoring and remote connectivity depend on the selected configuration. EMS Level 3 is an optional upgrade.
