HORIBA LabRAM Soleil is an automated confocal Raman microscope for spectral mapping of materials. Its achromatic mirror optics are optimized for 300–1600 nm. A motorized grating turret, integrated lasers and LabSpec support measurement workflows; fast imaging modes and QScan depend on the selected configuration.
OPTICAL RANGE300–1600 nmwithout changing optics
GRATING TURRET4motorized positions
LASERS4 + 1up to 4 built-in + 1 external
Key benefits
- Motorized optical components simplify switching between measurement modes.
- A four-position turret allows grating selection for spectral range and resolution.
- SWIFT and SmartSampling support fast spectral mapping with the required configuration.
- Optional QScan adds light-sheet confocal 2D/3D mapping.
- A Class 1 enclosure integrates optics, electronics and cooling.
- LabSpec and LabStore applications combine acquisition and analysis in one environment.
Technical specifications
| Model | LabRAM Soleil |
|---|---|
| Achromatic optical range | 300–1600 nm |
| Typical laser wavelengths | 325, 405, 473, 532, 638, 785 nm — selected in specification |
| Laser capacity | Up to 4 built-in solid-state + 1 external |
| Grating turret | Exchangeable motorized turret, 4 positions |
| Spectrometer scan speed | Up to 400 nm/s with 600 grooves/mm grating |
| Standard low-frequency cut-off | 30 cm⁻¹ with 532/638/785 nm edge filters |
| QScan | Optional: typical 100 × 100 µm sheet, 2 µm thick |
| Laser auto-alignment | 15 s; optional |
| Operating temperature | 18–28 °C |
| Dimensions W × D × H | <900 × 800 × 810 mm |
| Weight | 120 kg |
| Power consumption | <600 W for a fully equipped configuration |
Applications and configuration

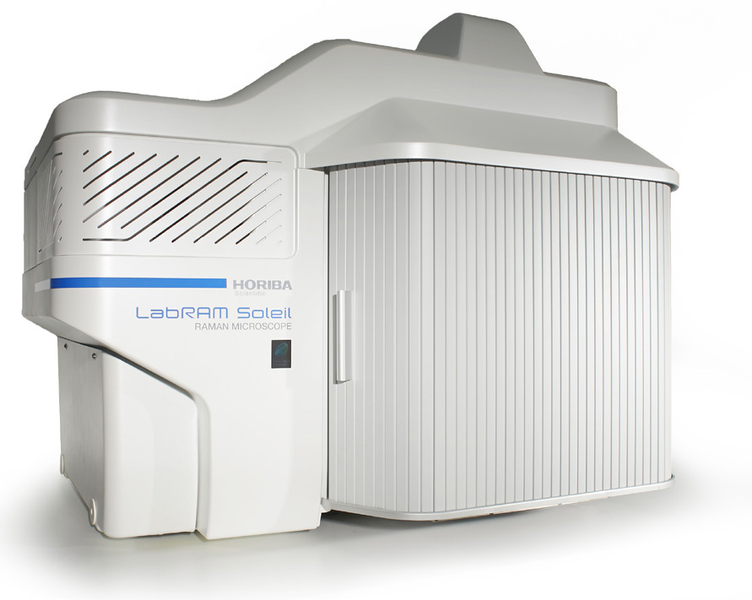

For polymers, pharmaceutical materials, microplastics and nanomaterials. Define lasers, gratings, detectors, objectives, stage and software licences. Specify SmartSampling, QScan, auto-alignment, AFM/SEM coupling, computer and service separately. The photograph illustrates the enclosed version; request pricing for the agreed package.
