HORIBA LabRAM Odyssey is a confocal Raman microscope for material composition and structure studies. Its 800 mm focal-length spectrometer supports Raman and photoluminescence within a 200–2200 nm achromatic optical range. Lasers, detectors, gratings and stage are selected for the samples; the full range does not imply one universal laser or detector.
OPTICAL RANGE200–2200 nmachromatic spectrometer
FOCAL LENGTH800 mmspectrometer
LOW FREQUENCIES<10 cm⁻¹typical at 532/633/785 nm with ULF
Key benefits
- Achromatic optics cover UV–VIS–NIR without changing the optical design.
- The open-space microscope accommodates cryostats and large-travel stages.
- DuoScan provides optical mapping without moving the sample.
- SWIFT modes accelerate Raman mapping compared with sequential point acquisition.
- LabSpec 6 combines spectral acquisition, processing and specialist applications.
- Optional AFM, SEM and fibre-probe coupling extends the available research methods.
Technical specifications
| Model | LabRAM Odyssey |
|---|---|
| Method | Confocal Raman microscopy; photoluminescence |
| Achromatic optical range | 200–2200 nm |
| Spectrometer focal length | 800 mm |
| Low-frequency limit with ULF | Down to 5 cm⁻¹ depending on laser; typically <10 cm⁻¹ at 532/633/785 nm |
| Optical mapping | DuoScan |
| Fast mapping | SWIFT |
| Software | LabSpec 6 |
| Navigation modules | NavMap, NavSharp, ViewSharp — configuration dependent |
| Particle analysis | ParticleFinder; requires camera, motorized XY stage and licence |
| Remote measurement probe | Optional SuperHead |
| AFM/TERS coupling | Optional; separately configured |
Applications and configuration

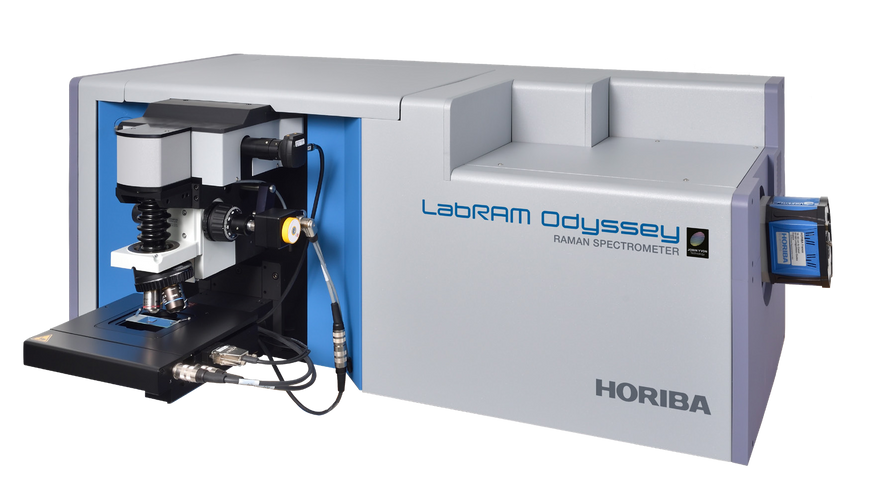

For polymers, microplastics, semiconductors, thin films and minerals. Agree lasers, objectives, detectors, gratings, ULF filters, stage, software modules, computer, installation and training. The manufacturer photograph illustrates a configuration; cryostat, AFM/TERS, SEM coupling and SuperHead are not automatically included. Request a price for the agreed specification.
Compare with: Renishaw inVia Qontor.
