Nikon AX R 2K with NSPARC confocal microscope

In stock
SKU: OSL-NIKON-AXR2K-NSPARC
  • Nikon AX R 2K with NSPARC confocal microscope
Description

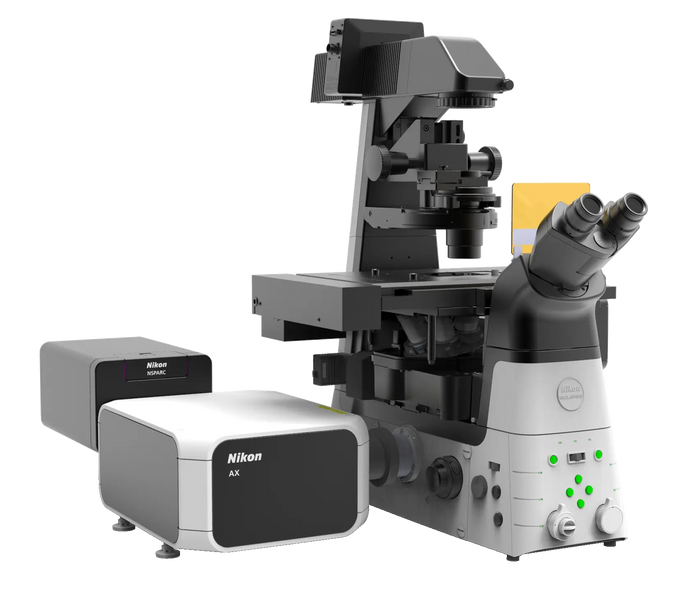

Nikon AX R 2K with NSPARC is a research confocal system combining galvanometric and resonant scanners. The 2K resonant mode supports up to 2048 × 2048 pixels, while NSPARC adds spatial photon detection. The photograph illustrates the AX/AX R series with NSPARC on an inverted Ti2-E stand; the supply specification defines the exact equipment.

RESONANT SCANNING2048 × 2048up to pixels; 2K version
2K FRAME RATE30 fpsat 2048 × 512 pixels
FIELDFN 25maximum field, mm

Key advantages

  • Two scanner types adapt acquisition to detail or speed requirements.
  • The 2K resonant scanner supports images up to 2048 × 2048 pixels.
  • Galvanometric mode supports image formats up to 8192 × 8192 pixels.
  • FN 25 covers a large specimen area with compatible optics.
  • NSPARC uses a spatial photon detector array for image formation.
  • NIS-Elements C integrates confocal acquisition with supported analysis modules.

Technical specifications

ModelAX R 2K with NSPARC
MethodConfocal laser scanning microscopy
ScannersGalvanometric and 2K resonant
Galvanometric scan formatUp to 8192 × 8192 pixels
2K resonant scan formatUp to 2048 × 2048 pixels
2K frame rate at 2048 × 51230 fps
2K frame rate at 2048 × 16720 fps; narrow region, not full frame
Maximum fieldFN 25 (25 mm)
NSPARC detectorSPPC spatial photon detector array
NSPARC barrier filtersUp to 7; selected for fluorophores
Confocal pinholeContinuously variable
Compatible standsTi2-E / Ni-E / FN1
SoftwareNIS-Elements C; modules and licences per specification

Application and configuration

For research imaging of cells, tissues and dynamic fluorescence processes. This listing specifies AX R with the 2K resonant scanner and NSPARC. Agree the stand, objectives, laser lines, spectral detectors, NSPARC filters, workstation, licences, installation and training in the quotation. The photograph shows a Ti2-E configuration and does not automatically define the entire package. NIR, incubation and additional software modules require separate agreement. The 720 fps rate applies only to a 2048 × 16 region; the stated rate at 2048 × 512 is 30 fps. Request pricing for the specified package.

Confocal laser microscopes

Compare with: ZEISS LSM 910.

Nikon AX R 2K with NSPARC

Price upon request
Request the price
