LaboGene ScanLaf Mars B2 1200 is a Class II Type B2 biological safety cabinet with total exhaust. All air is HEPA-filtered and discharged outside, with no recirculation into the work chamber. The airflow scheme protects the operator, product and environment and is intended for microbiological work involving small quantities of volatile chemicals.
Key features
- 100% exhaust and mandatory permanent connection to an external exhaust system;
- 480 × 1200 × 700 mm work chamber and 200 mm standard front opening;
- H14 HEPA filters to EN 1822, rated at 99.999% efficiency for 0.3 μm particles and 99.995% at MPPS;
- stepless downflow adjustment from 0.25 to 0.5 m/s;
- electrically operated front window, cleanable on both sides;
- AISI 304 stainless-steel worktop and trough, with 6 mm laminated safety glass.
Technical data
| Class / type | II / B2 |
| Part number | 703771 |
| External dimensions (D × W × H) | 797 × 1304 × 1326 mm |
| Work chamber (D × W × H) | 480 × 1200 × 700 mm |
| Front opening | 200 mm; 300 mm option |
| Downflow velocity | ≥ 0.28 m/s; adjustable from 0.25 to 0.5 m/s |
| Exhaust airflow | 1100 m³/h ±20% |
| Minimum exhaust static pressure | more than 300 Pa with a clean exhaust filter |
| Noise level | <57 dB(A), ISO 11201 |
| Light intensity | >1000 lux, variable |
| Power supply | 220–240 V, 50/60 Hz |
| Power consumption | 170 W; 120 W with LED |
| Net weight | 250 kg |
Exhaust requirements
Mars B2 1200 must be permanently connected to a dedicated external exhaust system. Its airflow capacity and available static pressure must be verified by an engineering calculation before ordering and installation. A Type B2 cabinet is not a fume cupboard and is not intended for unrestricted quantities of aggressive or volatile chemicals.
Options
300 mm front opening, double exhaust filter, UV light, standard support stand or electrically adjustable stand. The final configuration is agreed in the quotation.

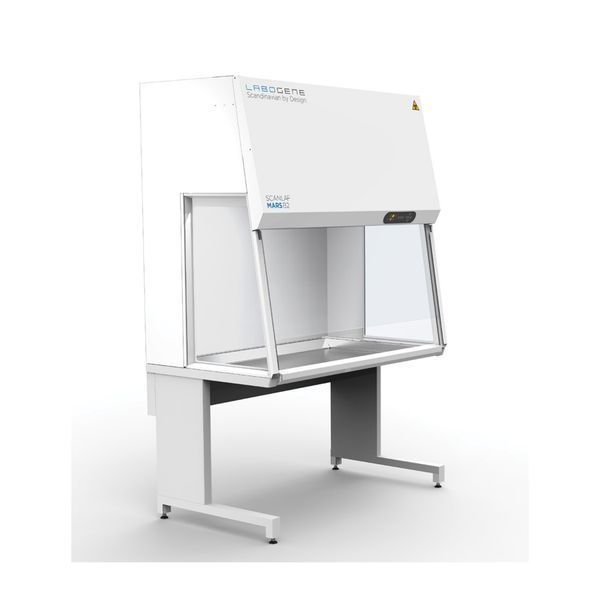

The image shows Mars B2 1200 with a stand; equipment may differ according to the selected configuration.
Catalogue designation
In the 2026 LaboGene price list, this configuration is designated Mars Pro 1200 B2, Cat. No. 703771. The manufacturer product page uses the shorter Mars B2 name.
