LaboGene ScanLaf Mars Pro 1800 is a triple-filter Class II biological safety cabinet designed to protect the operator, product and environment. Air from the work chamber passes through two consecutive sets of main HEPA filters, while the exhaust air is filtered before discharge.
Intended use
The cabinet is intended for laboratory work requiring controlled vertical laminar airflow and enhanced filtration protection, including tissue and cell culture, microbiology, virology and hazardous-material workflows subject to an approved risk assessment.
Key benefits
- triple HEPA-filter design, with work-chamber air passing through two sets of main filters;
- 70% recirculated air and 30% HEPA-filtered exhaust;
- operator protection by inflow, product protection by downflow and environmental protection by filtered exhaust;
- energy-efficient fans and optimized airflow for lower energy use, heat output and noise;
- motorized front window, sloped front and access for cleaning both side windows;
- manufactured and tested in compliance with EN 12469.
Technical data
| Protection class | II |
| Working width | 1800 mm |
| Work chamber (D × W × H) | 480 × 1800 × 700 mm |
| Airflow scheme | 70% recirculation / 30% filtered exhaust |
| Filtration | 3 HEPA filters, at least class U17 according to EN 1822-1 |
| Downflow velocity | 0.28 ± 0.01 m/s |
| Inflow velocity | 0.45 m/s |
| Exhaust airflow | 583 m³/h |
| Front opening | 200 mm; adjustable from 0 to 300 mm |
| Sound pressure level | ≤53 dB(A); Eco-Save mode ≤40 dB(A) |
| Power supply | 220–240 V, 50/60 Hz |
| Standard | EN 12469 |
| Catalogue number | 700100 |
Configuration and options
Base item 700100 includes a set of side windows with three holes. Electrical outlets, light source, table-top sections and support stand are selected for the required configuration and specified in the quotation.

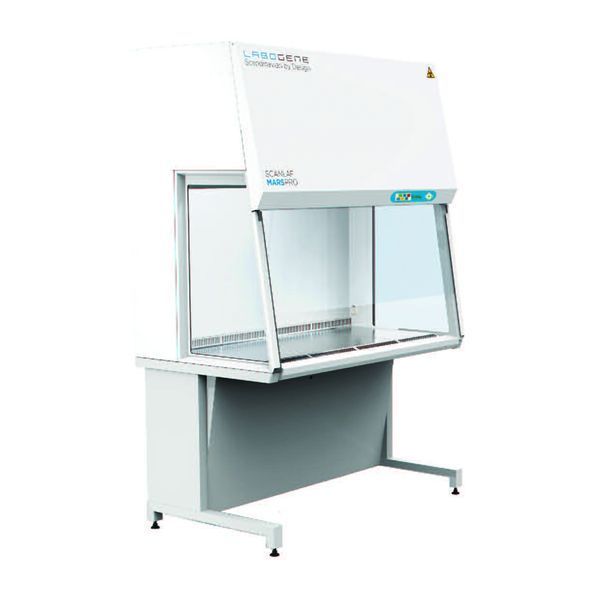

The image represents the ScanLaf Mars Pro series and may show options not included in the base configuration.
