AAS-2630 atomic absorption spectrometer with graphite furnace

In stock
SKU: AAS-2630
  • AAS-2630 atomic absorption spectrometer with graphite furnace
Description

AAS-2630 combines flame atomisation and a graphite furnace with automatic switching. Its eight-position lamp turret supports sequential analysis of multiple elements. The configuration is selected for the required concentration ranges, matrices and analytical methods.

ATOMISATIONFlame + GFFlame and graphite furnace
LAMP TURRET8Positions; lamps supplied separately
WAVELENGTH RANGE190–900 nmSequential elemental analysis

Key advantages

  • Two atomisation methods allow the mode to be selected for the concentration and matrix.
  • The automatic turret has eight lamp positions; it does not measure eight elements simultaneously.
  • Software controls peak search, wavelength setting and result processing.
  • Automatic ignition and gas-flow adjustment support flame-mode setup.
  • The graphite furnace supports programmed heating stages for electrothermal analysis.
  • Deuterium and self-absorption correction help account for background absorption.

Technical specifications

AtomisationFlame and graphite furnace; automatic switching
Lamp turret8 positions; lamps ordered separately
Wavelength range190–900 nm
Spectral bandwidth0.1 / 0.2 / 0.4 / 1.0 / 2.0 nm
Wavelength accuracy / repeatability±0.15 / <0.10 nm
BurnerTitanium, 100 mm; adjustable position
Graphite furnaceHeating to 3000 °C; up to 11 programs
Background correctionDeuterium and self-absorption
Main instrument power220 V, 50 Hz; 220 VA
Furnace power supply380 V, 50 Hz; 12 kVA — confirm for the ordered version
Main instrument dimensions / weight1170 × 480 × 440 mm; 100 kg
Operating environment10–35 °C; relative humidity ≤80%

Application and configuration

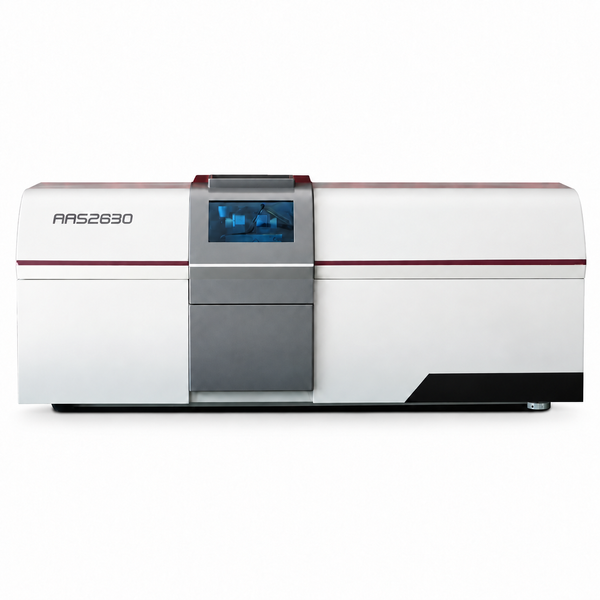

AAS-2630 supports elemental analysis of prepared water, food, raw-material and other samples. The graphite furnace broadens the method choice compared with the flame-only AAS-2610; validate the required detection limits using your samples. The offer includes the instrument, oil-free compressor, software and accessories. Hollow-cathode lamps, PC and printer are excluded; a hydride generator is optional. Gas supplies, extraction, furnace cooling and electrical services must be specified. The photograph shows the main instrument without ancillary equipment. The catalogue mentions Windows 98/2000/XP, so the current software version and PC compatibility must be defined for delivery.

Atomic absorption spectrometers

Compare with: AAS-2610 — flame atomisation.

AAS-2610 / AAS-2630 technical catalogue
