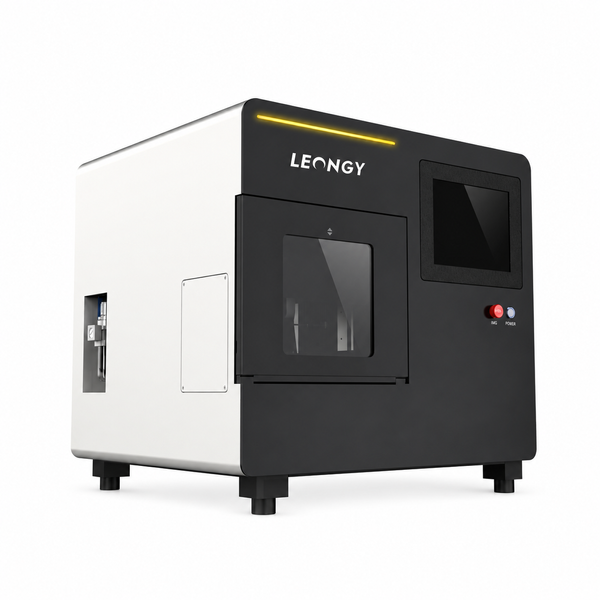

Leongy 5-axis dry dental milling machine

Description

Leongy 5-axis dry is a five-axis dental milling unit for dry machining of zirconia blanks, PMMA and wax. Automatic tool changing supports multi-stage laboratory CAM jobs. The specifications describe the offered configuration; its exact factory model designation is agreed in the quotation.

MACHINING5controlled axes

SPINDLE60 000rpm maximum speed

TOOLING8automatic tool positions

Key advantages

Five axes provide tool access from different angles.
Dry machining supports compatible zirconia blanks, PMMA and wax.
Eight tool positions reduce manual tool changes within a job.
A spindle rated up to 60,000 rpm allows material-specific settings.
Separate X/Y/Z travel data helps assess CAM job requirements.
The enclosed machining area supports a suitable dust extraction setup.

Technical specifications

Type	Dry milling
Number of axes	5
Materials	Zirconia, PMMA, wax
X × Y × Z travel	110 × 160 × 80 mm
A axis	±30°
B axis	360°
Maximum spindle speed	60 000 rpm
Maximum feed rate	6 000 mm/min
Tool magazine	8
Spindle power	1.8 kW
Power supply	220 V
Dimensions; mass	820 × 750 × 720 mm; 197 kg

Application and configuration

Operation requires compatible CAM strategies, a postprocessor, milling tools and dust extraction. Software licences, extraction, commissioning and tooling are specified separately. A water-cooled spindle does not imply wet milling. Metal machining requires a manufacturer-approved process.

Dental milling machines

Next zirconia processing stage: NeunoRton S9.

Supplier configuration specifications
