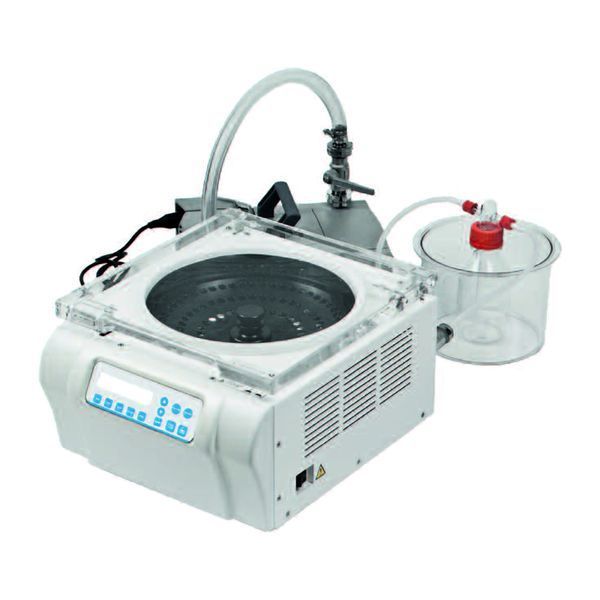

LaboGene ScanVac MiniVac Beta Centrifugal Vacuum Concentrator — A compact system for rapid concentration or drying of small laboratory samples in tubes with a Vacuubrand MP2.2 Teflon diaphragm pump.
Intended use
A compact system for rapid concentration or drying of small laboratory samples in tubes with a Vacuubrand MP2.2 Teflon diaphragm pump.
Key capabilities
- transparent acrylic lid for visual chamber monitoring
- isolated vacuum exhaust to reduce sample loss and cross-contamination risk
- ice container around the drip catcher to enhance evaporation
Confirmed specifications
| Vacuum pump | Vacuubrand MP2.2 Teflon diaphragm pump |
| Ultimate vacuum | 7 mbar |
| Included rotor | 48 × 1.5–2.0 ml and 76 × 0.5 ml tubes |
| Chamber heating | from ambient temperature to 80 °C; no active cooling |
| Vacuum indication | digital display down to 1 mbar |
| Control | timer, Start/Stop, time and temperature programming and storage of evaporation protocols |
| Routine maintenance | emptying the drip catcher of carried-over liquid |
Configuration and options
The set includes a DC drip catcher, ice container, connectors, hoses and clips. Other rotors, alternative diaphragm pumps and adapters for Heto and Savant rotors are available.
System catalogue number
| Cat. No. | Model / configuration |
|---|---|
| 7008100778 | ScanSpeed MiniVac Beta, 230 V, 50/60 Hz |
