BEMEMS PINKVIEW-AT DR Plus digital mammography system

Out of stock
SKU: PINKVIEW-AT DR Plus
  • BEMEMS PINKVIEW-AT DR Plus digital mammography system
Description

BEMEMS PINKVIEW-AT DR Plus is a digital mammography system for 2D breast imaging. The manufacturer identifies the digital version as Pinkview-DR Plus. It combines a gantry, digital detector and acquisition workstation with exposure and compression controls.

IMAGING2Ddigital mammography
TUBE VOLTAGE20–39 kV1 kV increments
SID660 mmsource-to-image distance

Key advantages

  • The digital detector sends images to the workstation for viewing and storage.
  • A tungsten anode and rhodium filter provide the spectrum for digital mammography.
  • AEC and Auto mAs assist exposure-parameter selection.
  • ASP supports automatic standard positioning.
  • MICOM microprocessor control regulates compression.
  • DICOM supports transfer to the facility’s digital archive.

Technical specifications

Digital version BEMEMS Pinkview-DR Plus
Modality Digital 2D mammography
Generator High-frequency inverter
Tube voltage 20–39 kV; 1 kV step
Large-focus exposure 1–720 mAs
Small-focus exposure 1–350 mAs
Anode; filter Rotating tungsten anode; rhodium filter
Focal spots 0.1 / 0.3 mm
Detector Digital; type and active area depend on version
SID 660 mm
Exposure control AEC / Auto mAs / manual
Positioning; connectivity ASP; DICOM

Application and configuration

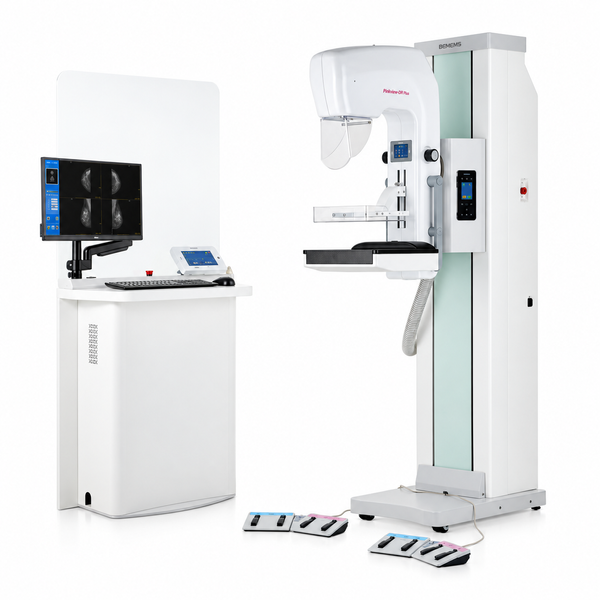

Specify a digital Pinkview-DR Plus system with gantry, detector, acquisition console, compression paddles and pedals. Detector versions vary; confirm the 24×30 cm format and pixel specifications for the selected package. Diagnostic monitors, PACS, biopsy accessories, magnification equipment, installation and training require separate agreement. Tomosynthesis is not stated for this offer. The photograph illustrates a configuration with an operator workstation.

Mammography systems

Compare with: GE Senographe Crystal Nova.

BEMEMS information on Pinkview-DR Plus

2 400 000.00 грн
