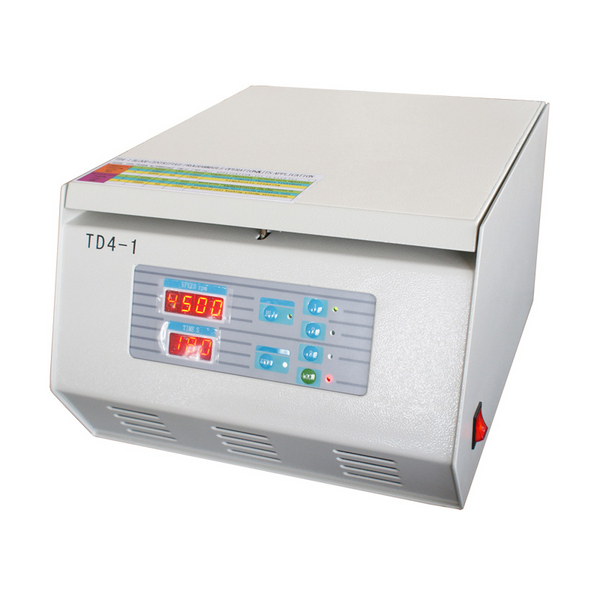

XIANGZHI TD4-1 — benchtop non-refrigerated blood cell washing centrifuge. Select the rotor, buckets and adapters for the sample format and required relative centrifugal force.
Maximum speed4500 rpm
Maximum RCF2000 × g
Maximum capacity12 samples
Key features
- Motor: Brushless, direct drive
- Maximum capacity: 12 samples
- Power supply: AC 220 V, 50 Hz, 5 A
- Type: Benchtop non-refrigerated blood cell washing centrifuge
- Maximum speed: 4500 rpm
- Maximum RCF: 2000 × g
Technical specifications
| Model / MPN | TD4-1 |
|---|---|
| Manufacturer | Changsha Xiangzhi Centrifuge Instrument Co., Ltd., China |
| Type | Benchtop non-refrigerated blood cell washing centrifuge |
| Maximum speed | 4500 rpm |
| Maximum RCF | 2000 × g |
| Maximum capacity | 12 samples |
| Speed accuracy | ±20 rpm |
| Time control | Programme controlled |
| Routine programmes | 6 |
| Noise level | <55 dB |
| Motor | Brushless, direct drive |
| Motor power | 100 W |
| Power supply | AC 220 V, 50 Hz, 5 A |
| Net / gross weight | 22 / 28 kg |
| Dimensions | 440×350×260 mm |
| Packed dimensions | 450×530×350 mm |
| Configuration in the master price list | Rotor SERO, 12×5 mL |
| Available compatible rotor | HLA: 12×2 mL, 12×1.5 mL or 12×0.5 mL, depending on the procedure |
Application and configuration
Maximum speed, RCF and capacity are limits for the listed platform or rotor configuration and may not be available simultaneously. Confirm the exact rotor, tube dimensions, adapters and permitted operating limits before ordering. Use the settings specified by the sample preparation method and the equipment instructions. This configuration has no active refrigeration. Confirm the SERO or HLA rotor and the cell-washing procedure.
Compare specifications: Non-Refrigerated Low-Speed Benchtop Laboratory Centrifuge TD4 — 6 × 15 mL, 4000 rpm
