Shimadzu TOC-4200 is an online carbon analyzer for process, drinking and wastewater monitoring. Catalytic combustion at 680 °C with non-dispersive infrared detection enables automated sample-stream analysis. Standard TC and NPOC modes can be extended with separately specified IC, POC or total-nitrogen measurements.
OXIDATION680 °Ccatalytic combustion
DETECTORNDIRinfrared CO₂ detection
SAMPLE STREAMS1–6multi-stream option
Key benefits
- 680 °C catalytic combustion for a broad range of organic compounds.
- Automatic acidification and sparging for NPOC analysis.
- Automatic dilution reduces manual handling of concentrated samples.
- Programmed calibration and measurement control.
- Sequential monitoring of up to six streams with suitable hardware.
- Storage for 20,000 results with USB and industrial communication interfaces.
Technical specifications
| Model | TOC-4200 |
|---|---|
| Oxidation | Catalytic combustion, 680 °C |
| Detection | NDIR |
| Standard parameters | TC / NPOC |
| Optional parameters | IC / POC / TOC / TN |
| Full-scale measuring ranges | 0–5 … 0–1000 mg C/L |
| Upper range with dilution | 20000 mg C/L |
| Dilution factor | 2–50 |
| Repeatability | ±2% F.S. |
| NPOC cycle under method conditions | ≥4 min |
| Sample streams | 1; up to 6 optional |
| Result storage | 20000 |
| Dimensions W×D×H excluding protrusions | 550×383×1240 mm |
| Weight | ≈70 kg |
| Ambient operating temperature | 1–40 °C |
| Power | 100–240 V AC ±10%, 50/60 Hz, 10 A |
Applications and configuration

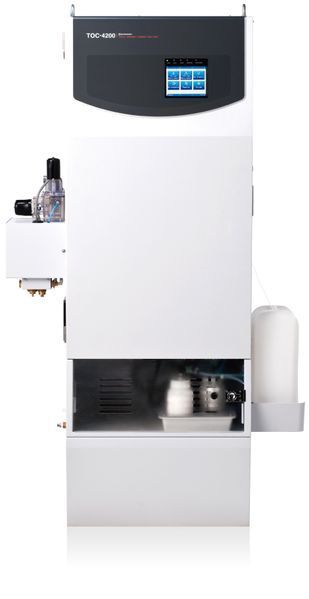

For continuous water monitoring and treatment-efficiency evaluation. Specify sampling, filtration, acid, carrier gas, drainage, calibration solutions and mounting for the sample matrix and installation. TN, multi-stream sampling, plant integration and web monitoring are separately configured. The 20,000 mg C/L upper range requires dilution. The photo shows an example with a stand and sample-handling hardware; inclusion must be confirmed in the quotation. Request a price for the complete system.
