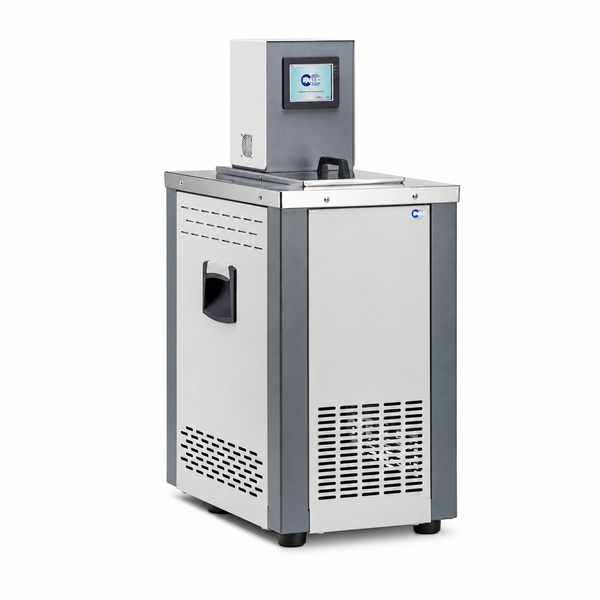

FALC SBF7T is a refrigerated circulating bath with a nominal capacity of 7 L and a −30…+150 °C operating range. Internal and external circulation support temperature control of samples in the bath and a connected external circuit. Settings are entered on the LCD touchscreen.
Temperature−30…+150 °C
Capacity7 L
ControlLCD touchscreen
Key features
- Wide temperature range. Cooling and heating from −30 to +150 °C with a suitable heat-transfer fluid.
- Two operating uses. Internal bath circulation and an external circuit can run simultaneously.
- Process timing. A timer up to 99 h 59 min 59 s or continuous operation; timing starts once the set temperature is reached.
- 18/8 stainless steel bath. A one-piece pressed tank for routine laboratory use.
- Automatic cooling control. The compressor switches off above +37 °C and restarts when needed.
Technical specifications
| Model | FALC SBF7T |
|---|---|
| Manufacturer part number | 612.1050.08 |
| Nominal capacity | 7 L |
| Temperature range | −30…+150 °C |
| Control | LCD touchscreen |
| Timer | up to 99 h 59 min 59 s or continuous operation |
| Chamber material | 18/8 stainless steel |
| Stated temperature accuracy in the bath | ±0.2 °C |
| Circulation | Internal and external |
| Usable bath dimensions, W × D × H | 100 × 150 × 200 mm |
| Heating power | 1300 W |
| Power supply | 220–240 V, 50/60 Hz |
| Weight | 31 kg |
Configuration and ordering
External circulation hoses, heat-transfer fluid and additional accessories are selected separately. The fluid must suit the operating temperature and the requirements of the connected equipment. Nominal capacity and usable working-area dimensions are specified separately.
Contact OSELY for a quotation, configuration assistance and the delivery lead time for your application.
