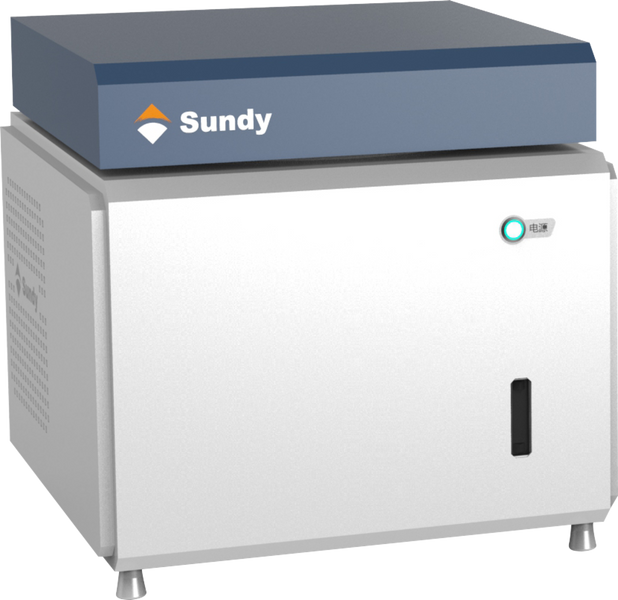

Sundy SDTGA6000A thermogravimetric analyzer

In stock
SKU: SDTGA6000A
  • Sundy SDTGA6000A thermogravimetric analyzer
Description

Sundy SDTGA6000A is an automated macro-thermogravimetric analyzer for moisture and ash testing of coal, coke, solid biofuels and compatible materials. Its single-furnace system weighs samples during a programmed thermal cycle. Designed for batch fuel proximate analysis, it requires a method matched to the material and the property being measured.

BATCH19 + 1samples + blank
FURNACE TEMPERATUREUp to 1000 °Cfrom ambient temperature
BALANCE RESOLUTION0.0001 gintegrated weighing

Key advantages

  • Batch loading of up to 19 samples and one blank.
  • Automatic weighing throughout the thermal cycle.
  • Separate or combined moisture and ash determination.
  • Programmable procedures for the selected method.
  • Automatic lid opening for cooling after a batch.
  • Sample mass display during operation.

Technical specifications

Model Sundy SDTGA6000A
Primary measurements Moisture and ash; other tests subject to method
Batch positions 19 samples + 1 blank
Sample mass 0.5–10 g; method dependent
Furnace temperature Ambient…1000 °C
Temperature control accuracy ±2 °C
Balance resolution 0.0001 g
Furnace lid Automatic opening
Maximum power 4 kW
Power supply AC 220 V ±10%; 50 Hz ±1 Hz
Dimensions, L × W × H 550 × 590 × 530 mm
Instrument weight Approx. 70 kg

Application and configuration

Agree the material, sample mass, thermal cycle, crucibles and test endpoint. The manufacturer offers optional volatile-matter determination within combined analysis; these results are not intended for arbitration. Loss-on-ignition and other applications require a suitable validated method. This fuel macro-analyzer should be assessed separately for other research tasks. The computer, software, gas connections, consumables and commissioning are specified in the supply agreement.

Thermogravimetric analyzers

Planning commissioning: OSELY technical service.

Official product information Sundy
