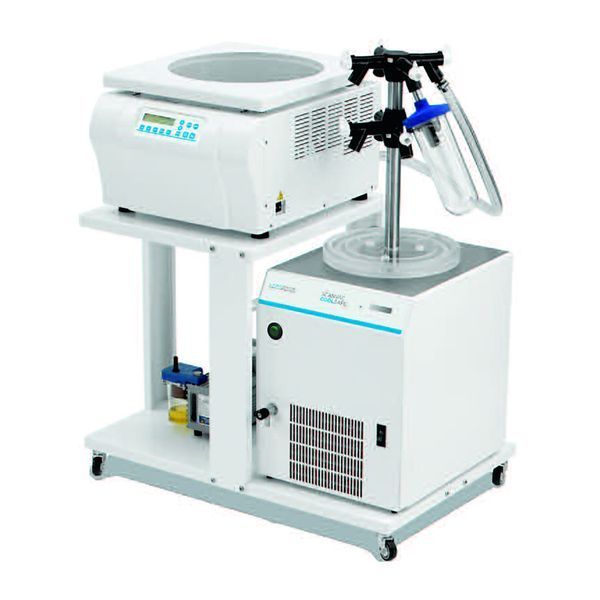

LaboGene ScanVac MaxiVac Beta Vacuum Concentration and Freeze-Drying System — A compact automatic system for low-temperature vacuum concentration and freeze drying of laboratory samples.
Intended use
A compact automatic system for low-temperature vacuum concentration and freeze drying of laboratory samples.
Key capabilities
- cold trap with a seamless condenser
- Teflon-coated centrifuge
- automatic cycle with timer and programs
- mobile floor trolley with castors
Confirmed specifications
| Sample formats | up to 200 × 1.5/2.0 ml tubes; 15/50 ml tubes; up to 4 × 250 ml bottles |
| Cold-trap temperature | −110 °C |
| Condenser capacity | 2.5 kg/24 h |
| Vacuum pump | RZ 2.5 rotary vane |
| Ultimate vacuum | 0.001 hPa |
| Pumping speed | 38 l/min |
| Centrifuge | Teflon-coated |
| Control | programmable vacuum levels, chamber temperature and runtime; storage of evaporation protocols |
Configuration
The rotor and holders are selected for the sample format. Optional Teflon cold-trap coating and a glass insert with quick-seal lid are available.
