Illumina MiSeq i100 Plus sequencer, 20115695

In stock
SKU: Illumina MiSeq i100 Plus
  • Illumina MiSeq i100 Plus sequencer, 20115695
Description

Illumina MiSeq i100 Plus is a benchtop sequencer for NGS research. It combines XLEAP-SBS sequencing, primary data processing and DRAGEN secondary analysis. The Plus system supports 5M, 25M, 50M and 100M flow cells. Instrument catalogue number: 20115695. For Research Use Only; not for diagnostic procedures.

SINGLE-END READS100Mup to, 100M flow cell
DATA OUTPUT30Gb, 100M / 2 × 150 bp
LONG READS2 × 500bp, 25M only

Key advantages

  • Four flow cell formats accommodate different research batch sizes.
  • The Plus model supports the higher-output 50M and 100M flow cells.
  • Onboard DRAGEN runs supported secondary analysis workflows without a separate server.
  • A ready-to-load cartridge integrates reagents and the flow cell.
  • Reagents ship and store at room temperature.
  • Automated cluster generation and no post-run wash simplify operation.

Technical specifications

ModelMiSeq i100 Plus
Catalogue number20115695
Intended useRUO — research use only
Sequencing chemistryXLEAP-SBS
Flow cells5M / 25M / 50M / 100M
Single-end reads per run5–100 million
Output at 2 × 150 bp1.5 / 7.5 / 15 / 30 Gb (5M / 25M / 50M / 100M)
Run time at 2 × 150 bp7 / 7 / 7.5 / 8 h (5M / 25M / 50M / 100M)
2 × 300 bp mode5M / 25M / 50M: 3 / 15 / 30 Gb; not for 100M
2 × 500 bp mode25M only: 25 Gb, approximately 24 h
Quality at 2 × 150 bp≥90% of bases >Q30; PhiX library
Secondary analysisOnboard hardware-accelerated DRAGEN
Software version requirementv1.1.0 or later for 50M, 100M and 25M / 1000-cycle kits

Application and configuration

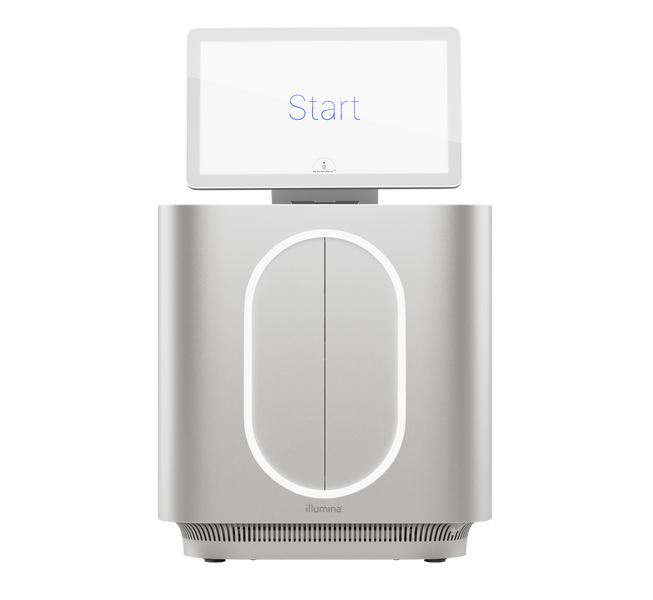

Item 20115695 includes the instrument, touchscreen, onboard computer, control software and hardware-accelerated DRAGEN pipelines. It is designed for customer installation; installation services are not included in this item. Agree reagent kits, library preparation, training and service separately. Output, run time and Q30 depend on the flow cell, read mode and library quality; specifications use PhiX. The maximum 2 × 500 bp read length requires the 25M / 1000-cycle kit. The photograph shows the MiSeq i100 series housing. Request pricing for the agreed package.

Next-generation sequencers

Compare with: Illumina MiSeq i100.

Illumina MiSeq i100 Plus

Price upon request
Request the price
