Huvitz HRT-7000 ophthalmic workstation

Description

Huvitz HRT-7000 is a refraction workstation for organizing an ophthalmic examination area. Its rotating instrument table, adjustable patient chair and motorized arm help position the equipment and patient. Diagnostic instruments shown in the image illustrate a possible setup and are specified separately.

TABLE ROTATION90°instrument positioning

CHAIR TRAVEL150 mmvertical adjustment

ARM TRAVEL±100 mmvertical movement

Key advantages

Rotating table for instrument placement and positioning.
Handle assists movement of the upper table.
Motorized arm with vertical adjustment.
Chair height adjustment for patient positioning.
Chair and arm controls within the examination area.
LED lamp for local illumination.

Technical specifications

Model	Huvitz HRT-7000
Type	Refraction workstation
Unit dimensions, W × D × H	1147 × 1177 × 1564 mm
Table size, W × D × T	1147 × 450 × 30 mm
Table rotation	90°
Head lateral travel	400 mm (R–L)
Arm vertical travel	±100 mm
Chair vertical travel	150 mm
Lighting	LED, 3 W
Power supply	AC 110/220 V, 50/60 Hz
Maximum power consumption	420 W
Diagnostic equipment	Specified separately

Application and configuration

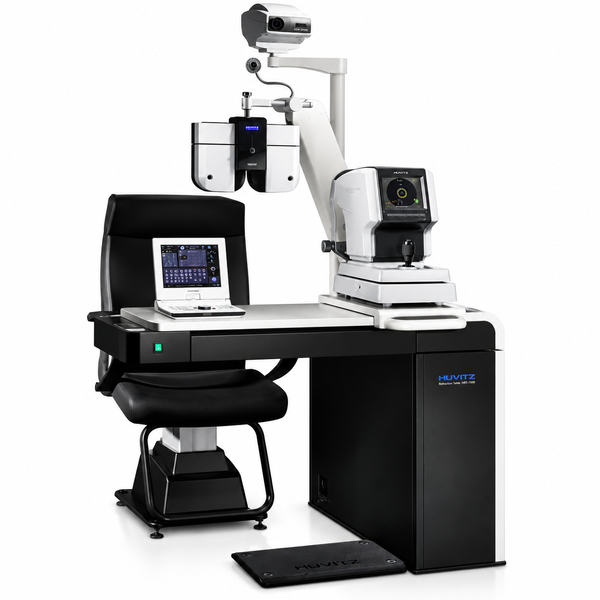

Specifications are based on the HRT-7000 brochure. Confirm the exact version, installation side, mounts and room requirements before ordering. The image shows the workstation with a chair and an illustrative diagnostic setup. The autorefractor, phoropter and controller, chart projector and other instruments are not automatically included in the workstation price. The final supply, installation and training are defined in the quotation.

Ophthalmic workstations

Compare with: Rodenstock PRO 500 SC 500.

Huvitz manufacturer brochure

Price upon request
