Agilent 1260 Infinity III Prime LC is a modular HPLC/UHPLC system with a maximum operating pressure of 800 bar. This listing describes a quaternary Flexible Pump, Multisampler, multicolumn thermostat (MCT) and diode array detector configuration. Flow, pressure and injection limits depend on the installed modules and operating mode.
PRESSURE≤800 barsystem limit
FLOW0.001–5 mL/minsettable range
COLUMNS≤4with MCT
Key benefits
- Pressure up to 800 bar supports modern UHPLC columns.
- The Flexible Pump mixes up to four solvents and supports Blend Assist.
- ISET supports method transfer between compatible LC configurations.
- The MCT accommodates up to 4 columns and provides two temperature zones.
- The Multisampler supports automated injection from vials and microplates.
- InfinityLab Assist adds guided workflows and maintenance assistance when configured.
Technical specifications
| Model | Agilent 1260 Infinity III Prime LC |
|---|---|
| Maximum pressure | 800 bar |
| Pump in this configuration | 1260 Infinity III Flexible Pump |
| Pump type | Quaternary |
| Settable flow range | 0.001–5 mL/min |
| Standard injection range | 0.1–100 µL |
| Extended injection | Up to 1800 µL with required options |
| Columns with MCT | Up to 4 |
| MCT heating | ≤85 °C |
| MCT cooling | Up to 10 °C below ambient |
| MCT temperature zones | 2 |
| Diode array detector | 1260 Infinity III DAD HS; 190–640 nm; ≤120 Hz |
| Method transfer | Intelligent System Emulation Technology (ISET) |
Applications and configuration

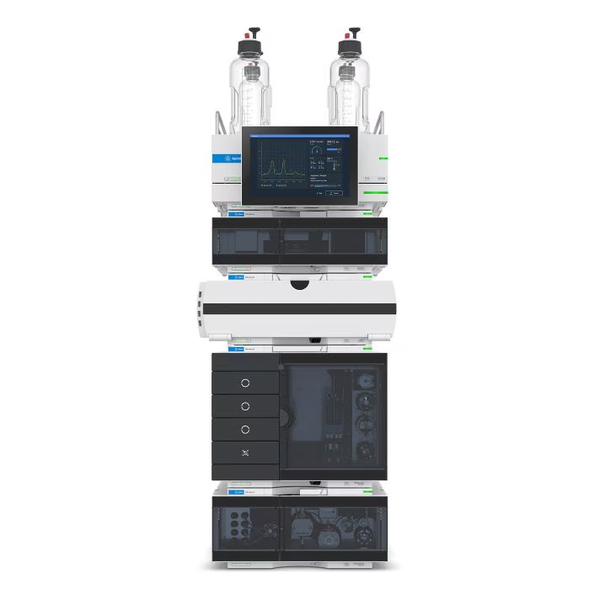

For analytical separations in pharmaceutical, chemical, food and environmental samples. The quotation defines exact pump, autosampler, MCT, detector, valve, column, software and computer part numbers. Agree InfinityLab Assist, ID readers, extended injection kits and alternative detectors separately. The photograph illustrates a system with Assist; maximum pressure and flow are not promised simultaneously in every mode. Request a configuration-specific price.
Compare with: Agilent 1260 Infinity III LC.
