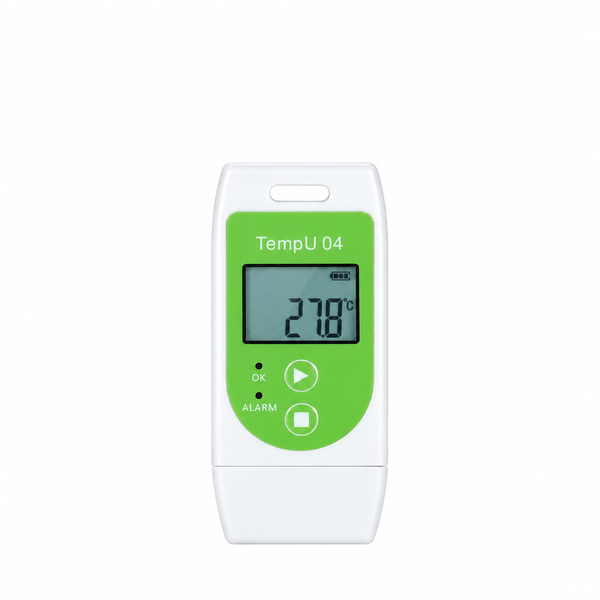

TZONE TempU04 is a reusable USB temperature data logger with an LCD display, automatic PDF/CSV reporting and IP65 protection. It supports cold-chain monitoring during transport and storage.
Measurement range−30…+60 °C
Power supplyCR2032 battery
Accuracy±0.5 °C within −20…+40 °C
Key features
- Reusable logger for temperature monitoring during transport and storage.
- LCD display for viewing temperature information.
- Automatic PDF and CSV reports without specialised software for reading the reports.
- Configurable recording interval, start delay and alarm thresholds.
Technical specifications
| Measurement range | −30…+60 °C |
|---|---|
| Accuracy | ±0.5 °C within −20…+40 °C |
| Memory | 32,000 records |
| Recording interval | Configurable from 10 seconds to 18 hours |
| Reports | PDF and CSV; no specialised software required |
| Interface | USB 2.0 |
| Protection | IP65 |
| Power supply | CR2032 battery |
| Dimensions | 84 × 36 × 14 mm |
| Weight | 23 g |
| Manufacturer | TZONE |
Use and important conditions
- Configure the recording interval, start delay and alarm thresholds.
- Place the logger with the shipment or in the area being monitored.
- When recording is complete, connect the device to a USB port to generate the PDF/CSV report automatically.
- Before ordering, specify the required range, route duration and report requirements so compatibility with your cold-chain protocol can be checked.
Another model in this category: TempU07 L100 USB temperature data logger — −100…+100 °C, PT100 probe
