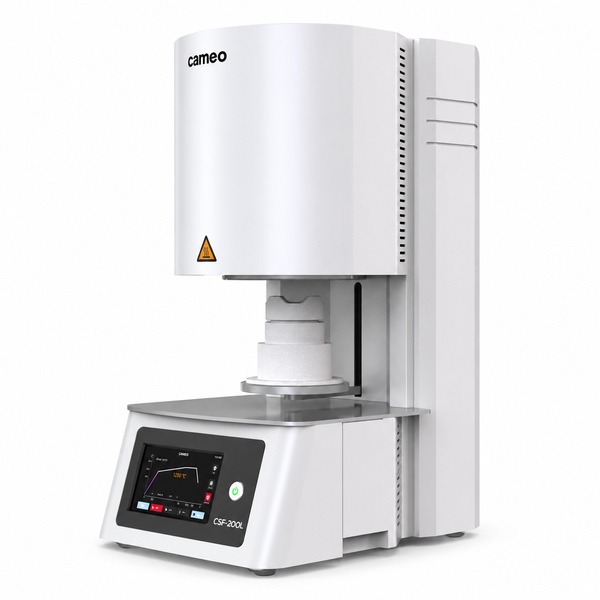

Aidite Cameo CSF-200L zirconia sintering furnace

In stock
SKU: Cameo CSF-200L
  • Aidite Cameo CSF-200L zirconia sintering furnace
Description

Aidite Cameo CSF-200L is a zirconia sintering furnace supporting fast and conventional cycles. Programmable temperature curves adapt processing to the selected material and batch size. Technical data shown refers to the manufacturer’s NEW CSF200L revision.

MODES2fast and conventional
PROGRAMMING30temperature curves
POWER2.5 kWNEW CSF200L revision

Key advantages

  • Fast and conventional modes support different laboratory jobs.
  • Stored temperature curves simplify repeat use of approved schedules.
  • The NEW CSF200L revision uses four SiC heating elements.
  • A Ø100 × 120 mm chamber defines the available loading space.
  • The lifting platform provides access to the crucibles.
  • Confirming the revision helps identify compatible consumable parts.

Technical specifications

SeriesCameo CSF-200L / NEW CSF200L
ApplicationZirconia sintering
ModesFast / conventional
Stored curves30
Heating elements4 × SiC
Chamber Ø × height100 × 120 mm
Capacity*Up to 70 crowns
Fast cycle*From 3 hours
Power2.5 kW
Power supply220 V, 50 Hz
Dimensions370 × 510 × 780 mm
Mass50 kg

Application and configuration

The manufacturer states fast cycles from three hours and capacity up to 70 crowns. These limits depend on material, restoration dimensions and loading and should not be treated as simultaneous universal throughput. Confirm the CSF-200L revision, crucibles, beads, elements and materials approved for fast sintering before ordering.

Zirconia sintering furnaces

Compare with: NeunoRton S9.

Official product information Aidite
