IMAX 1010 V mobile X-ray unit

Out of stock
SKU: IMAX 1010 V

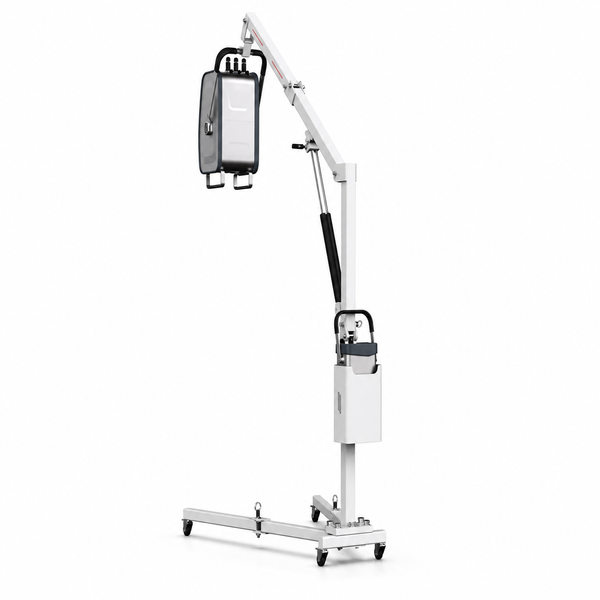

  • IMAX 1010 V mobile X-ray unit
Description

X-Ray International IMAX 1010 V is a portable X-ray unit on a mobile stand for bedside examinations. An 8-inch touchscreen provides access to exposure settings. The specifications below describe the 8 kW maximum-output version in the 2024 MedExim catalogue; digital image acquisition depends on the selected package.

OUTPUT8 kWmaximum, 2024 catalogue
CONTROLS8″touchscreen
VOLTAGE40–125 kV1 kV steps

Key advantages

  • The mobile stand allows the unit to be moved into a ward.
  • The portable generator is supported by an articulated arm.
  • Exposure settings are accessible on the 8-inch touchscreen.
  • Tube voltage is adjustable in 1 kV steps within the stated range.
  • The 0.1–250 mAs range supports exposure selection.
  • The image acquisition package can be selected for the required workflow.

Technical specifications

Model IMAX 1010 V
Design Portable unit on a mobile stand
Maximum output 8 kW; 2024 catalogue version
Touchscreen 8″
Tube voltage 40–125 kV; 1 kV steps
Tube current 3–125 mA
Current-time product 0.1–250 mAs
Exposure time 0.001–6.3 s
Focal spots 0.6 / 1.5 mm; per 2024 catalogue
Anode angle 15°
Digital acquisition Detector or CR system according to the agreed package

Application and configuration

The base unit and stand support bedside radiography. A detector or CR reader, computer, DICOM software, dosimeter and printer must not be assumed included unless specified. Values refer to the documented catalogue version: generator output, tube, power supply and accessories must match the selected unit documentation. The healthcare facility project defines operating conditions and site preparation.

Mobile X-ray systems

Compare with: IMAX 1600 V.

MedExim catalogue: IMAX 1010 V

710 000.00 грн
