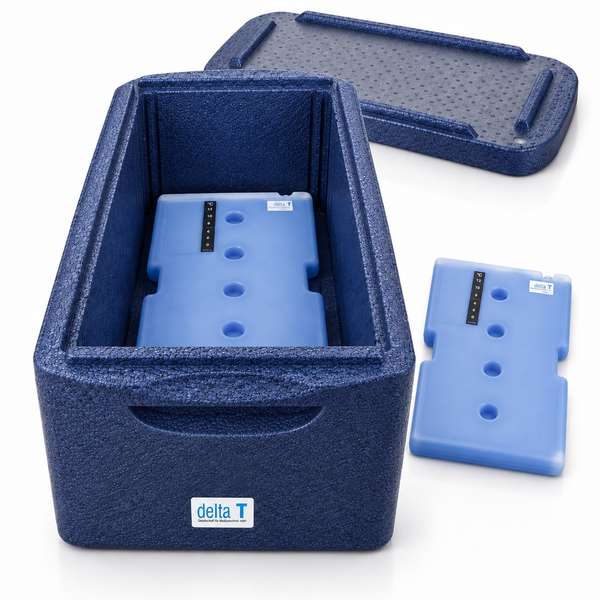

Medical insulated container Delta T TransPorter BlueLine 50L. A passive system for transporting temperature-sensitive materials with preconditioned thermal elements. Select the configuration for the required temperature, payload and route.
Base unit. Thermal elements and temperature logger are ordered separately.
Manufacturer stated capacity50 L
Empty unit weight, kg3.68
Cooling typePassive, no electrical supply
Features
- EPP body
- Carrying handle
- Sealable construction

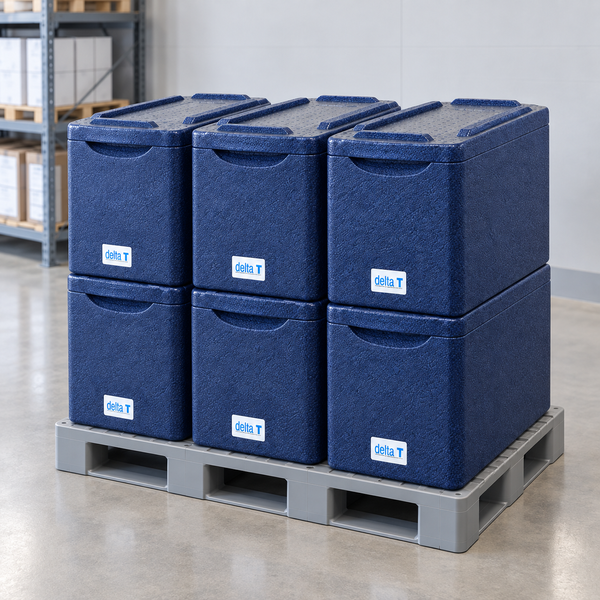

- Stackable containers
- Thermal elements selected for the application
- No electrical connection required
Technical specifications
| Model | TransPorter BlueLine 50L |
|---|---|
| Manufacturer part number | B100050 |
| Manufacturer | Delta T, Germany |
| Manufacturer stated capacity | 50 L |
| Outer dimensions, mm | 646 × 368 × 500 |
| Inner dimensions, mm | 470 × 285 × 395 |
| Empty unit weight, kg | 3.68 |
| Cooling type | Passive, no electrical supply |
| Insulation | EPP |

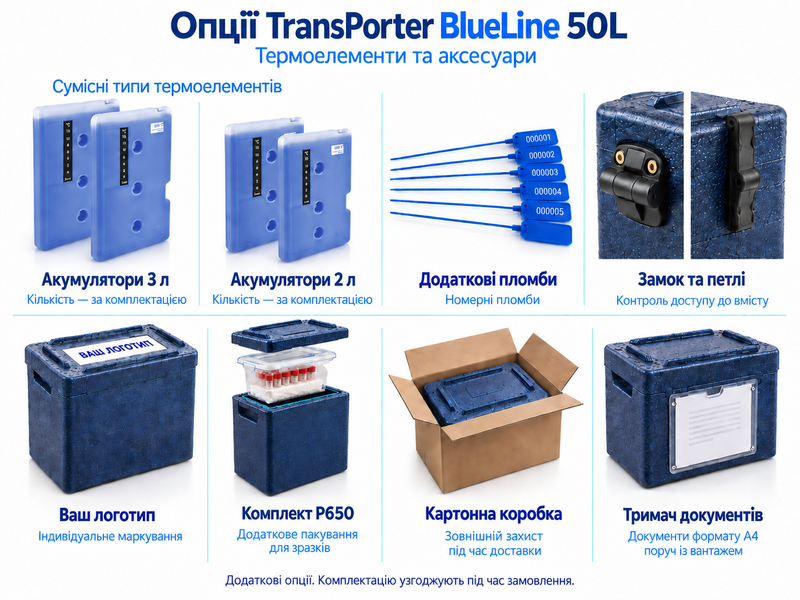

| Compatible configuration, ordered separately | 2 × 3 L + 2 × 2 L |
| Temperature and duration | Depend on thermal elements, payload and route conditions |
| Base configuration | Container, 10 seals; 2 stay bars |
Configuration and selection
Base unit. Thermal elements and temperature logger are ordered separately.
Available payload space is determined after adding thermal elements and protective packaging. Specify the material, dimensions, temperature range and journey duration. Packing, element preconditioning and temperature monitoring must match the qualified configuration. The thermal element name does not guarantee the payload temperature.
