Medical insulated bag Delta T BlueLine Bag 10L. A passive system for transporting temperature-sensitive materials with preconditioned thermal elements. Select the configuration for the required temperature, payload and route.
Base unit. Thermal elements and temperature logger are ordered separately.
Nominal model capacity10 L
Empty unit weight, kg1.06
Cooling typePassive, no electrical supply
Features
- Shoulder strap for carrying
- Document pocket
- Sealable construction
- Compact transport of small payloads
- Thermal elements selected for the application
- No electrical connection required
Technical specifications
| Model | BlueLine Bag 10L |
|---|---|
| Manufacturer part number | B100210 |
| Manufacturer | Delta T, Germany |
| Nominal model capacity | 10 L |
| Outer dimensions, mm | 350 × 230 × 260 |
| Inner dimensions, mm | 320 × 210 × 240 |
| Empty unit weight, kg | 1.06 |
| Cooling type | Passive, no electrical supply |

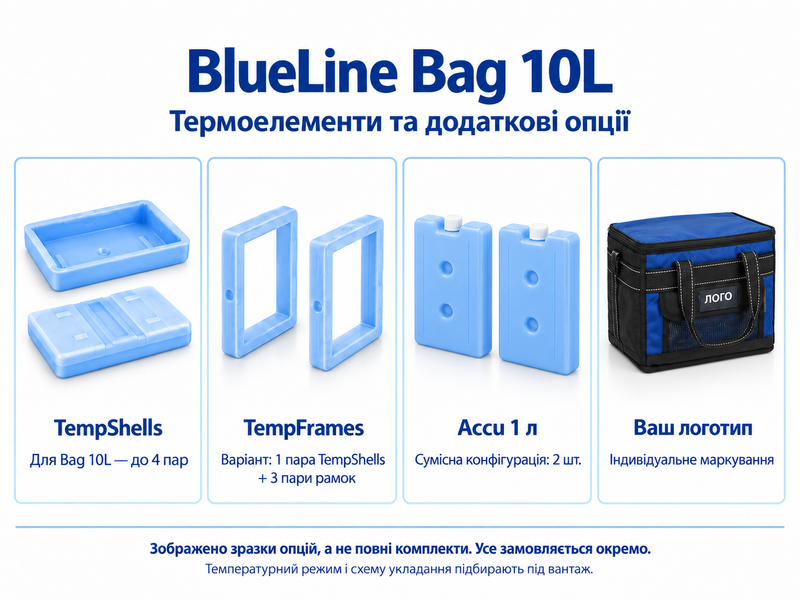

| Compatible configuration, ordered separately | 4 pairs of TempShell Elements |
| Temperature and duration | Depend on thermal elements, payload and route conditions |

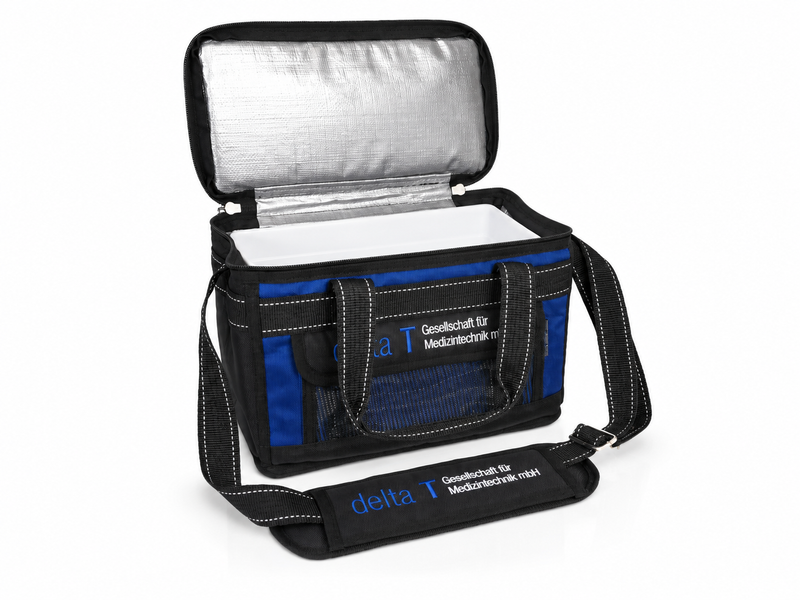

| Base configuration | Insulated bag with shoulder strap |

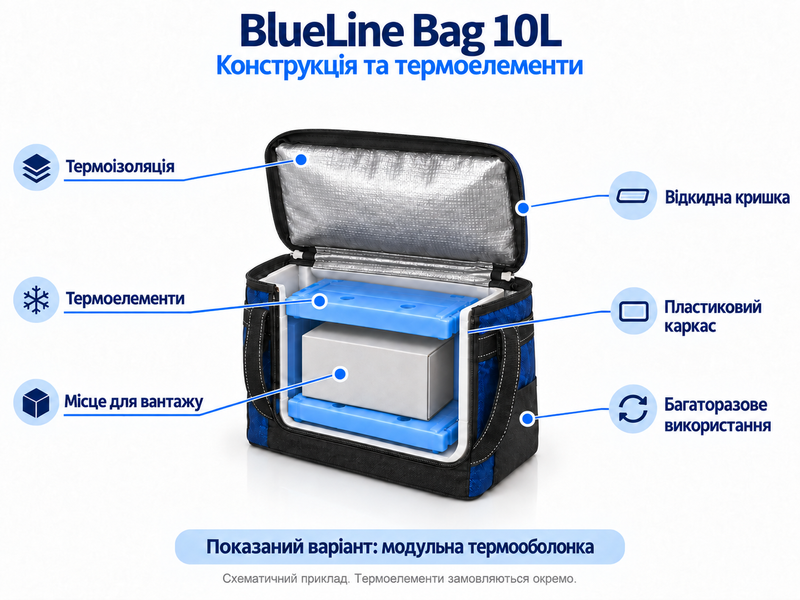

Configuration and selection
Base unit. Thermal elements and temperature logger are ordered separately.
Available payload space is determined after adding thermal elements and protective packaging. Specify the material, dimensions, temperature range and journey duration. Packing, element preconditioning and temperature monitoring must match the qualified configuration. The thermal element name does not guarantee the payload temperature.
