Mindray UX5 is a 4K 2D NIR laparoscopic tower configuration with a 32-inch medical monitor. The package combines a video processor with camera head, NIR light source, insufflator, telescope and mobile trolley. This is a two-dimensional fluorescence imaging configuration.
IMAGING4K 2D NIRselected configuration
MONITOR32″medical 4K
INSUFFLATOR50 L/minwith gas heating
Key benefits
- 4K video processor and camera head included.
- NIR light source and compatible telescope.
- 32-inch medical monitor with 4K display.
- Insufflator with gas heating.
- Smoke evacuation function.
- Mobile trolley with monitor holder.
Technical specifications
| Manufacturer | Mindray |
|---|---|
| Model | UX5 |
| Configuration | 4K 2D NIR |
| Monitor | 32″; 4K LCD |
| Video processor | With 4K camera head |
| Light source | NIR |
| Insufflator maximum flow | 50 L/min |
| Gas heating | Yes |
| Smoke evacuation | Yes |
| Telescope diameter | 10 mm |
| Telescope length | 320 mm |
| Telescope viewing direction | 30° |
| Trolley | With monitor holder |
| Manufacturer country | China |
Applications and configuration

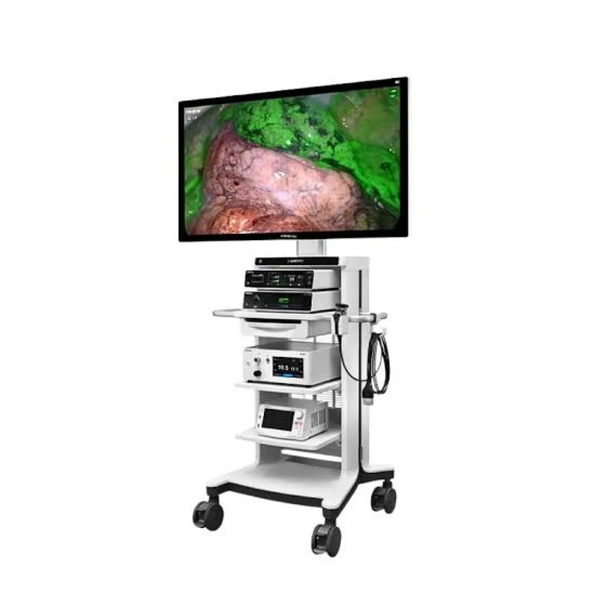

The price covers the listed 4K 2D NIR 32-inch package: 4K processor and camera head, light source, 50 L/min insufflator with heating and smoke evacuation, NIR 10 × 320 mm 30° telescope and trolley. The image illustrates tower layout; additional shelf modules, a separate recorder, aspirator, electrosurgical generator, instruments and consumables are included only when specified. 3D and 55-inch monitor versions are separate configurations. Confirm exact part numbers, installation and training before ordering.
Compare with: LAPOMED Comfort HD.
