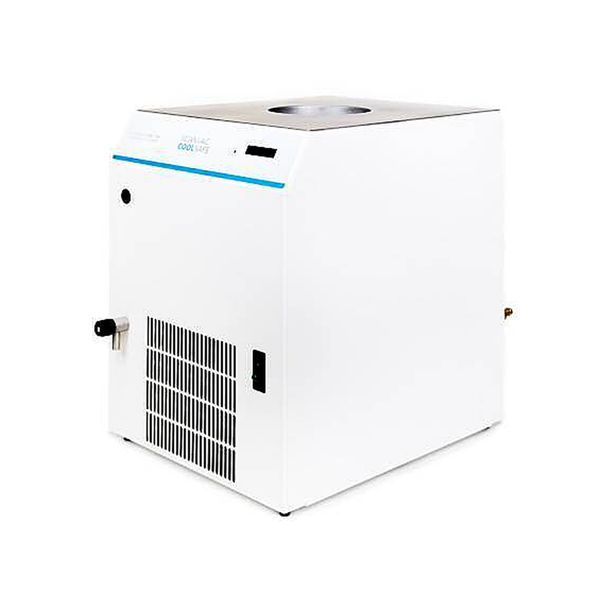

LaboGene ScanVac CoolSafe Basic Laboratory Freeze Dryer — the entry configuration for reliable laboratory freeze drying with digital condenser-temperature display.
Key benefits
- digital condenser-temperature display;
- wide selection of small chambers, manifolds and accessories;
- 4 or 9 L condensers; −55 and −110 °C versions are available for 4 L;
Technical specifications
| OSELY model code | COOLSAFE-BASIC |
| Family variant | CoolSafe Basic |
| Condenser and temperature | 4 L: −55/−110 °C; 9 L: −55 °C |
| Ice performance | 4 L — 2.5 kg/24 h, 3 kg max; 9 L — 4 kg/24 h, 7 kg max |
| Cat. No. | Configuration | Condenser coating |
|---|---|---|
| 7001000060 | CoolSafe 55-4 | Stainless steel |
| 7001000115 | CoolSafe 110-4 | Stainless steel |
| 7001000055 | CoolSafe 55-9 | Stainless steel |
| 702204 | CoolSafe 110-4 Teflon | Teflon for aggressive media |
Applications and configuration
For routine lyophilization and research work requiring straightforward operation, a compact format and a selection of small chambers or manifolds.
The chamber, manifold, vacuum pump and other components are selected for the sample type and quantity, solvents, required performance and drying protocol. The exact configuration is confirmed before ordering.
