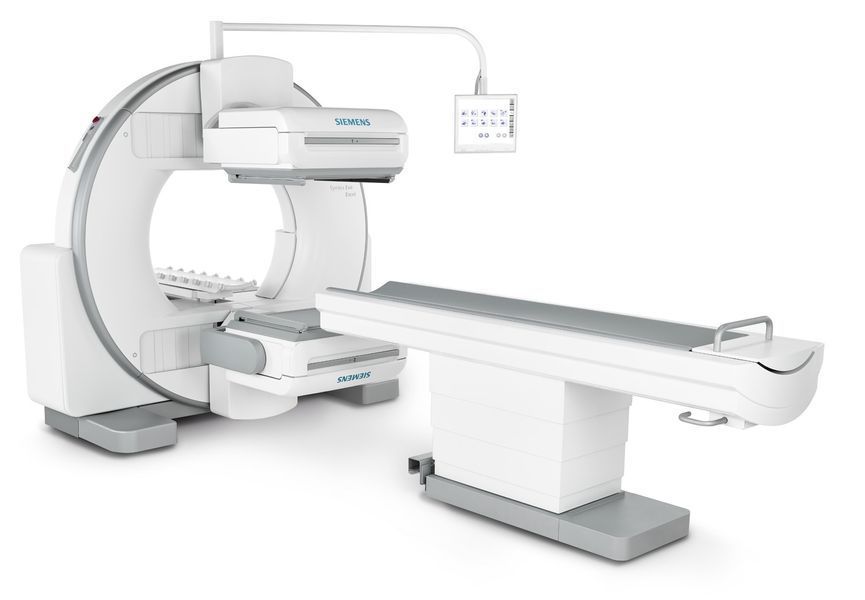

Siemens Healthineers Symbia Evo Excel is a dual-detector planar scintigraphy and SPECT system without integrated CT. Open geometry, infrared body contouring and positioning tools support nuclear medicine workflows. Crystal thickness, collimators and software packages are selected for the clinical workload.
DETECTORS2planar imaging and SPECT
FIELD OF VIEW53.3×38.7 cmdetector
PATIENT WEIGHT≤227 kgrated patient limit
Key benefits
- Two HD detectors for planar and tomographic acquisition.
- Infrared body contouring.
- Detector tilt supports examination positioning.
- Protocol-specific AUTOFORM collimators.
- Touch display and handheld positioning controls.
- Static, dynamic and gated protocols when configured.
Technical specifications
| Model | Symbia Evo Excel |
|---|---|
| Methods | Planar / SPECT |
| Detector count | 2 |
| Integrated CT | None |
| Detector field of view | 53.3×38.7 cm |
| Configuration-dependent crystal | NaI, 3/8″ or 5/8″ |
| Energy range | 35–588 keV |
| Maximum patient weight | 227 kg |
| Tunnel opening | 101.1×78.2 cm |
| Tunnel length | 34.1 cm |
| System L×W | 4.48×2.16 m |
| Manufacturer minimum room dimensions | 3.61×4.58 m |
| Body contouring | Infrared |
| System sensitivity under test conditions | 202 cpm/μCi, LEHR, 10 cm |
Applications and configuration
For nuclear medicine departments. Specify crystal thickness, collimators, patient table and positioning aids, workstation, reconstruction licences and image-archive integration. Flash3D and additional applications are agreed separately. This gamma camera has no integrated CT. Radiopharmaceuticals and ancillary department equipment are not automatically included. Verify room dimensions against the individual site plan. Request a quote.
Compare with: GE HealthCare NM 830.
