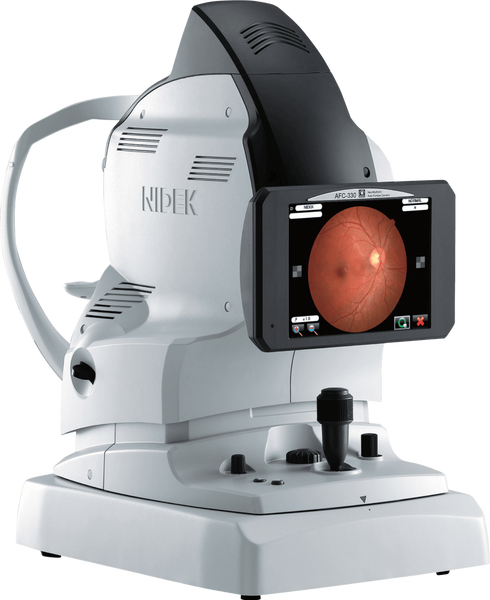

NIDEK AFC-330 is a non-mydriatic fundus camera with a built-in microcomputer and 12-megapixel CCD camera. Automatic alignment, focusing and capture support a sequential retinal photography workflow. Small-pupil mode has a separate field of view.
CAMERA12 MPbuilt-in CCD
FIELD OF VIEW45° / 33°standard / small-pupil mode
DISPLAY8.4″tiltable touchscreen
Key benefits
- Automatic X, Y and Z tracking.
- Automatic focusing and image capture.
- Small-pupil mode from 3.3 mm.
- Integrated computer and camera.
- Motorized chinrest with 62 mm travel.
- LAN and USB 2.0 data connectivity.
Technical specifications
| Model | AFC-330 |
|---|---|
| Type | Non-mydriatic fundus camera |
| Camera | CCD, 12 MP |
| Field of view | 45° |
| Small-pupil field of view | 33° |
| Minimum pupil | 4.0 / 3.3 mm |
| Working distance | 45.7 mm |
| Display | 8.4″ LCD Touch |
| Tracking | X / Y / Z |
| Chinrest travel | 62 mm |
| Interfaces | LAN / USB 2.0 |
| Power | 100–240 V; 50/60 Hz |
| Dimensions W × D × H | 316 × 518 × 579 mm |
| Weight | 29 kg |
Applications and configuration
For digital retinal documentation by qualified professionals. The standard field is 45°; small-pupil photography uses 33°. NAVIS-EX panorama/stereo software, an external fixation target, instrument table and network integration are specified separately. Confirm accessories and the final package in the order specification. Request a quote.
