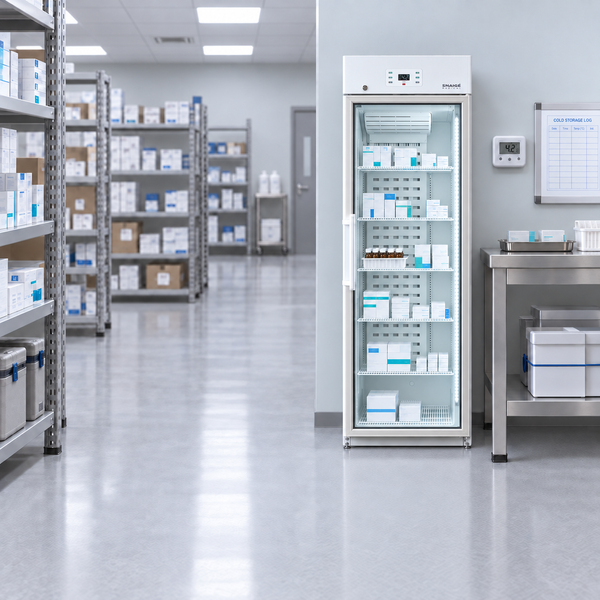

Medical pharmaceutical refrigerator Snaige Medical MD40DD-P301SEQ
For storage of vaccines, medicines and other pharmaceutical products at +2…+8 °C. Gross volume: 385 L; net volume: 270 L. Storage conditions and temperature for each product or material must follow its manufacturer’s instructions.
TEMPERATURE+2…+8 °CFactory setpoint +5 °C
VOLUME385 / 270 LGross / net
DOORSGlassDoor type
ENERGY CONSUMPTION1.903 kWhPer 24 hours
EXTERNAL DIMENSIONS600 × 620 × 2025 mmWidth × depth × height
INTERNAL DIMENSIONS500 × 418 × 1645 mmWidth × depth × height
Key features
- Control system: Electronic.
- Cooling system: Forced air circulation by fan.
- Visual alarm: Yes.
- Audible alarm: Yes.
- Defrosting: Automatic.
- Temperature logger: Built-in, export via USB.
- Controller and alarm backup power duration: At least 12 h.
- Total number of shelves: 6 pcs.
- Maximum shelf load: 40 kg.
- The backup battery supports the controller, recording and alarms; it does not power cooling.
Technical specifications
| Volume | |
|---|---|
| Gross volume | 385 L |
| Net volume | 270 L |
| Dimensions and weight | |
| External dimensions (W × D × H) | 600 × 620 × 2025 mm |
| Internal dimensions (W × D × H) | 500 × 418 × 1645 mm |
| Net weight | 80.5 kg |
| Controls and electronics | |
| Control system | Electronic |
| Actual temperature display | Yes |
| User setpoint adjustment | No; only by manufacturer or official representative |
| Visual alarm | Yes |
| Audible alarm | Yes |
| High temperature alarm | Yes |
| Low temperature alarm | Yes |
| Door open alarm | Yes |
| Power failure alarm | Immediately after power failure |
| Controller and alarm backup power duration | At least 12 h |
| Functions on backup power | Controller, recording and alarms; no cooling |
| Temperature logger | Built-in, export via USB |
| Temperature log export | To USB drive |
| Specially configured USB drive | Included |
| Number of recent alarm records | 100 records |
| Alarm record data | Event date and duration |
| Temperature log file | DATA.txt |
| Alarm log file | ALARM.txt |
| Potential-free alarm contact | Yes |
| External alarm connection | Provided |
| Digital interface | RS485 |
| External sensor cable entry port | Yes |
| External sensor port diameter | 12.5 mm |
| Calibration block | Yes |
| Low temperature protection | Yes |
| Temperature specifications | |
| Minimum storage temperature | +2 °C |
| Maximum storage temperature | +8 °C |
| Factory temperature setpoint | +5 °C |
| Temperature fluctuation | 0.5 °C |
| Temperature gradient | 2.9 °C |
| Warm-up time from +5 to +10 °C | 40 min |
| Cool-down time from +25 to +5 °C | 40 min |
| Recovery after door opened for 1 min | 8 min |
| Test conditions for the three time specifications | Empty chamber; ambient temperature +25 °C |
| Positive deviation from setpoint | 1.3 °C |
| Negative deviation from setpoint | -1.1 °C |
| Cooling | |
| Cooling system | Forced air circulation by fan |
| Fan stops when door opens | Yes |
| Defrosting | Automatic |
| Refrigerant | R600a |
| Protection against contact with cold surfaces | Evaporator protective cover |
| Heat emission | 285 kJ/h |
| Electrical and energy specifications | |
| Rated voltage | 220–240 V |
| Rated frequency | 50 Hz |
| Daily energy consumption | 1.903 kWh/24 h |
| Annual energy consumption | 695 kWh/year |
| Rated current | 1.5 A |
| Power input | 250 W |
| Mains cable length | 240 cm |
| Mains plug type | Euro plug |
| Cabinet, doors and feet | |
| Side wall material | White-coated steel |
| Interior material | HIPS polystyrene |
| Door type | Double selective glazing |
| Glass door frame | Aluminium profile |
| Door lock | Mechanical |
| Automatic door closing | Yes |
| Reversible door | Provided |
| Removable door gasket | Yes |
| Interior lighting | Top LED lighting |
| Number of adjustable front feet | 2 pcs |
| Number of rear wheels | 2 pcs |
| Number of lock keys | 2 pcs |
| Operating conditions | |
| Minimum ambient temperature | +10 °C |
| Maximum ambient temperature | +35 °C |
| Climate class | 7 |
| Maximum relative humidity | 75 % |
| Noise level | 50 dB(A) |
| Chamber equipment | |
| Total number of shelves | 6 pcs |
| Number of adjustable shelves | 5 pcs |
| Number of bottom shelves | 1 pcs |
| Shelf width | 495 mm |
| Shelf depth | 380 mm |
| Bottom shelf width | 483 mm |
| Bottom shelf depth | 265 mm |
| Maximum shelf load | 40 kg |
| Shelf material | Steel wire with white polymer coating |
| Options ordered separately | |
| Organisers | Separate order |
| Perforated metal shelves | Separate order |
| Additional shelves | Separate order |
| Branding | Separate order |
| XWEB remote monitoring system | Separate order |
| Product identification | |
| Equipment type | Medical pharmaceutical refrigerator |
| Model | MD40DD-P301SEQ |
| Factory code | MD40DD-P301SEQMAXXXX1SN4B |
| EAN code | 4770104040092 |
| Packaging and product codes | |
| Packaging dimensions without pallet (W × D × H) | 620 × 630 × 2080 mm |
| Gross weight without pallet | 86 kg |
| Pallet packaging factory code | MD40DD-P301SEQMAXXXX1SN4A |
| Pallet packaging EAN | 4770104040092 |
| Packaging dimensions on pallet (W × D × H) | 620 × 710 × 2210 mm |
| Gross weight on pallet | 94.5 kg |
Application and limitations
Do not use for blood, plasma, other infusion fluids, chemically unstable, flammable or alkaline materials. Follow the storage conditions for the specific materials and the manufacturer’s manual.
