The price is for the EMS Level 1 configuration.

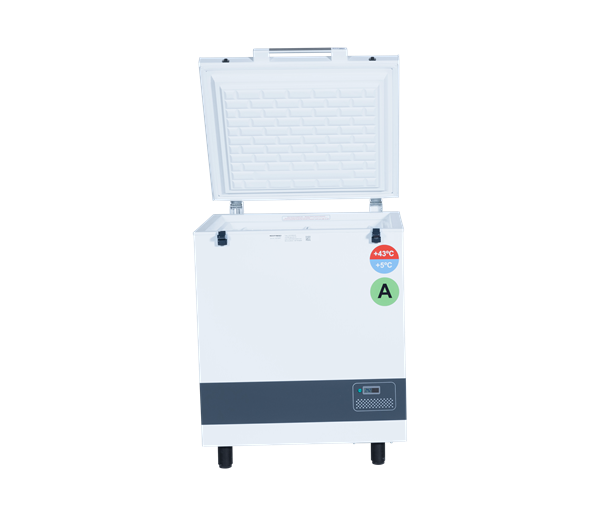

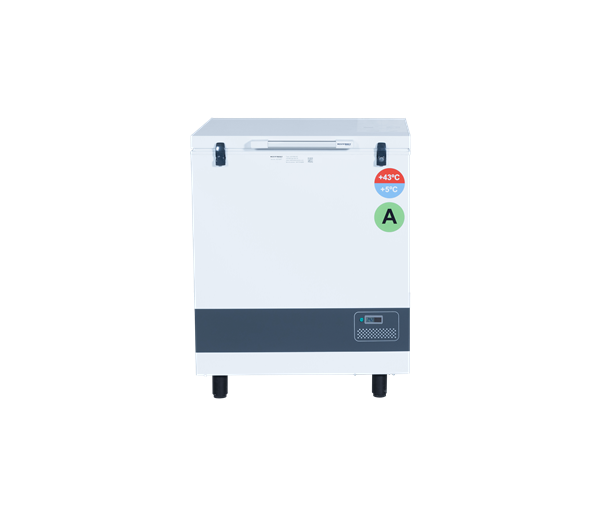

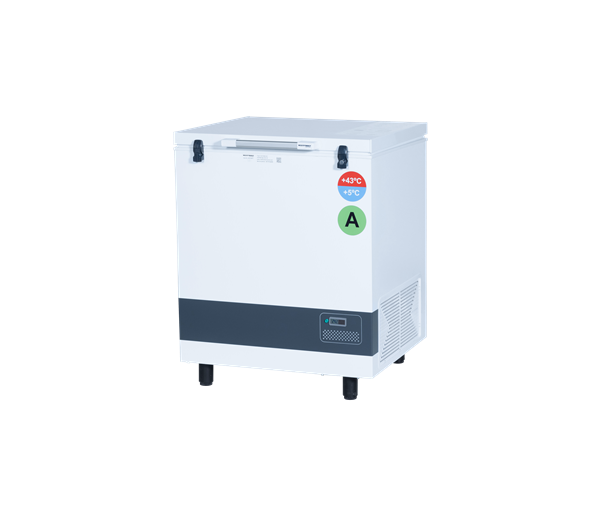

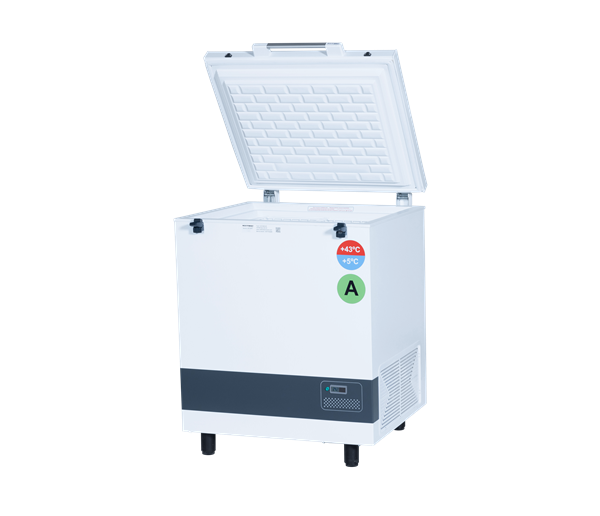

Vestfrost VLS 054Ae SDD is an ice-lined energy-efficient vaccine refrigerator powered by Solar Direct Drive. Its 55.5 L net refrigerator compartment maintains +2…+8 °C. Stored ice helps preserve the cold during the night and periods of insufficient sunlight.
TEMPERATURE+2…+8 °C
GROSS / NET VOLUME108 / 55.5 L
POWER SUPPLYSolar (SDD)
EXTERNAL DIMENSIONS720 × 700 × 910 mmWidth × depth × height

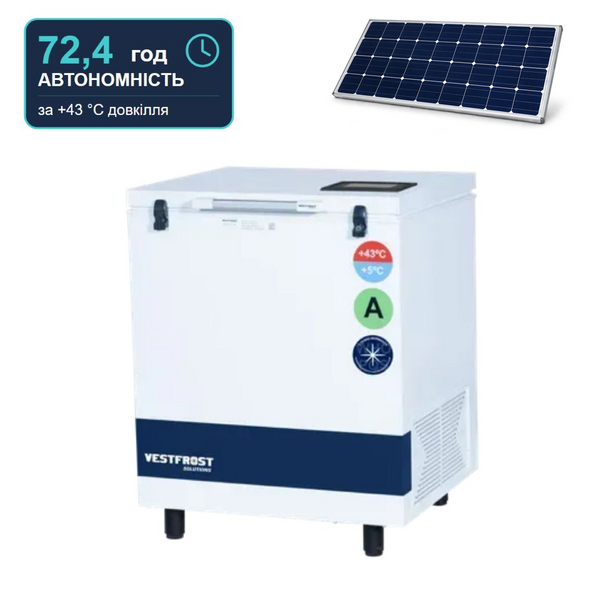

SDD AUTONOMY72.4 hAt +43 °C · Manufacturer data
WHO PREQUALIFICATIONConfirmedWHO PQS E003-106e
EMS monitoring system
Choose a configuration for on-site monitoring of one refrigerator or remote monitoring of equipment across multiple facilities.
LEVEL 1
Basic local monitoring
On-site control
- Basic display and data logging
- Audible and visual alarms
- Data export via USB
No remote connectivity.
LEVEL 2
Advanced local monitoring
On-site control
- 5″ colour touchscreen
- Temperature graphs, event log and equipment status
- Local alarms and USB data export
Level 3 can be activated later.
LEVEL 3
Remote monitoring
Fleet-wide control
- Level 2 features + 2G/4G LTE connectivity
- Online dashboard, temperature and alarm history
- SMS, email and remote diagnostics
Requires a data subscription.
Enable remote monitoring later
EMS Level 2 version VF-EMS L2/3 2.0 can be upgraded to Level 3 without installing an additional GSM module. Connectivity is configured through the system’s technical menu.
1-year subscription3-year subscription
The subscription starts when connectivity is activated. Mobile network coverage is required for data transmission. Renewals use the tariff in effect at the time of renewal.
Connection pricing on request.
Choose your EMS configurationThe EMS level and scope of supply are agreed when ordering.
