Delta T · Germany · medical thermal logistics

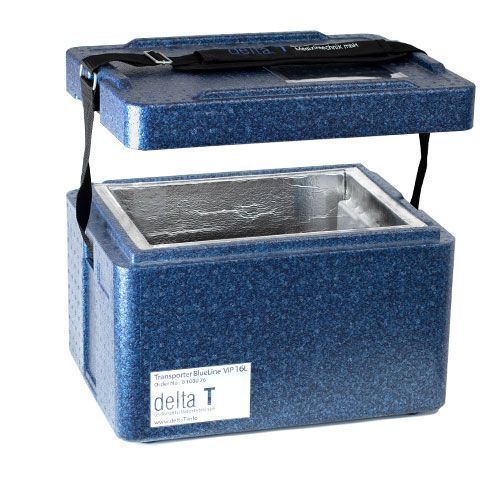

TransPorter BlueLine VIP 16L — A vacuum-insulated container for temperature-controlled transport of medical and laboratory materials. Vacuum insulation and a transparent plastic liner with temperature-element cavities form a passive transport system.
Thermal protectionOver 96 hours*
Empty product weight4 kg
Nominal volume16 L
Over 96 hours is a possible transport duration stated by the manufacturer, depending on configuration and ambient temperature. No single temperature range or universal test protocol accompanies this claim. It is not a 96-hour guarantee for every payload; confirm the packing configuration, element conditioning and route.
Benefits in daily use
Vacuum insulation
Insulation reduces heat exchange; the transparent liner has cavities for compatible temperature elements.
4 kg before loading
A shoulder strap simplifies carrying. Element and payload weights are additional.
Delta T expertise
Part of the delta T GmbH medical thermal logistics system. Select compatible components by part number and required temperature range.
No power supply in transit
The passive transport system uses preconditioned temperature elements and needs no mains or vehicle power during transport.
Stackable design
Multiple containers can be stacked for transport to help organise a series of shipments.
Temperature-range selection
Compatible elements and the packing configuration define the range, not the VIP name itself. Record temperature with a separate logger.
Thermal protection: duration and conditions
Over 96 hours is a possible transport duration stated by the manufacturer, depending on configuration and ambient temperature. No single temperature range or universal test protocol accompanies this claim. It is not a 96-hour guarantee for every payload; confirm the packing configuration, element conditioning and route.
Technical specifications
| Model | TransPorter BlueLine VIP 16L |
|---|---|
| Manufacturer | delta T GmbH, Germany |
| Manufacturer part number | B100076 |
| Nominal volume | 16 L |
| Empty product weight | 4 kg |
| Outer dimensions | 488 × 368 × 339 mm |
| Inner dimensions | 320 × 260 × 230 mm |
| Compatible elements / system | Accu S 1L and Accu 1L; quantity and packing are application-specific |
| Thermal protection | Over 96 hours* |
| Sales unit | 1 item |
Nominal volume is not the usable payload volume: temperature elements and protective packaging occupy part of the space.
Preparing for transport
- Define the permitted payload temperature, route duration and seasonal conditions.
- Select compatible temperature elements and a confirmed packing configuration. Condition elements according to the instructions for the specific temperature version.
- Load the prepared payload, close the product and monitor temperature with a separate logger. Opening reduces thermal protection time.
What you receive
One TransPorter BlueLine VIP 16L container with shoulder strap.
Temperature elements, inner boxes and a temperature logger are not included unless explicitly specified in the agreed configuration. Additional components are ordered separately.
Tell OSELY the required temperature range, payload dimensions and quantity, route duration and ambient conditions to select a suitable configuration.
