Delta T · Germany · medical thermal logistics

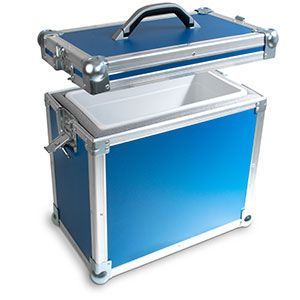

MiniVacuum Case — A rigid vacuum-insulated case for samples, vaccines and other medical payloads with selected temperature elements. The plastic interior is washable, while the housing protects the system during carrying.
Thermal protectionRoute-specific*
Empty product weight7.04 kg
Nominal volume16 L
The manufacturer does not publish a fixed temperature-holding time for this model. Duration must be confirmed for the selected temperature elements, payload and route; a universal 48–72-hour rating is not claimed.
Benefits in daily use
Vacuum insulation
Insulation works with compatible TempShell elements. The housing alone cannot establish the required range without preconditioned elements.
Practical carrying
A lid-mounted handle is provided for carrying. Add payload and element weights to the empty case weight.
Delta T expertise
Part of the delta T GmbH medical thermal logistics system. Select compatible components by part number and required temperature range.
No power supply in transit
The passive transport system uses preconditioned temperature elements and needs no mains or vehicle power during transport.
Plastic interior
The interior separates the payload from the insulation. Clean according to the manufacturer’s recommendations.
Sealing option
The product can be sealed for access control. Use a separate logger to monitor temperature.
Thermal protection: duration and conditions
The manufacturer does not publish a fixed temperature-holding time for this model. Duration must be confirmed for the selected temperature elements, payload and route; a universal 48–72-hour rating is not claimed.
Technical specifications
| Model | MiniVacuum Case |
|---|---|
| Manufacturer | delta T GmbH, Germany |
| Manufacturer part number | B100039 |
| Nominal volume | 16 L |
| Empty product weight | 7.04 kg |
| Outer dimensions | 422 × 250 × 415 mm |
| Inner dimensions | 335 × 165 × 305 mm |
| Compatible elements / system | 5 pairs of TempShell elements or combinations with TempShell Frames |
| Thermal protection | Route-specific* |
| Sales unit | 1 item |
Nominal volume is not the usable payload volume: temperature elements and protective packaging occupy part of the space.
Preparing for transport
- Define the permitted payload temperature, route duration and seasonal conditions.
- Select compatible temperature elements and a confirmed packing configuration. Condition elements according to the instructions for the specific temperature version.
- Load the prepared payload, close the product and monitor temperature with a separate logger. Opening reduces thermal protection time.
What you receive
One MiniVacuum Case in the base configuration.
Temperature elements, inner boxes and a temperature logger are not included unless explicitly specified in the agreed configuration. Additional components are ordered separately.
Tell OSELY the required temperature range, payload dimensions and quantity, route duration and ambient conditions to select a suitable configuration.
