Delta T · Germany · medical thermal logistics

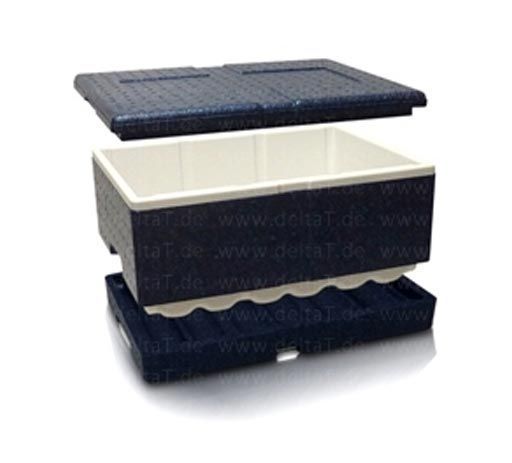

BlueLine S 12L Complete — A modular container for cooling and transporting whole blood after donation. The Complete version combines a bottom, middle section and lid; additional sections adapt the system to the number of bags. This model must not be confused with S12L Neo.
Whole-blood cooling≈ 2 hours to +22 °C*
Empty product weight1.16 kg
Tray capacity6 blood bags
The B110010 brochure describes cooling whole blood to approximately +22 °C in two hours with preconditioned 22C Plus Accu S 265ml: four elements and six blood bags per tray. Two hours is the cooling time, not the holding duration. The system then maintains temperature during transport, but no specific holding time in hours is published.
Benefits in daily use
Cooling after donation
The manufacturer’s described configuration is for whole blood. The element type must match the blood component and the approved procedure.
Light base configuration
The Complete version weighs 1.16 kg without payload or elements and measures 400 × 300 × 215 mm externally.
Delta T expertise
Part of the delta T GmbH medical thermal logistics system. Select compatible components by part number and required temperature range.
No power supply in transit
The passive transport system uses preconditioned temperature elements and needs no mains or vehicle power during transport.
Modular loading
Trays can be stacked. Agree the number of sections and total system height separately.
Thermal protection: duration and conditions
The B110010 brochure describes cooling whole blood to approximately +22 °C in two hours with preconditioned 22C Plus Accu S 265ml: four elements and six blood bags per tray. Two hours is the cooling time, not the holding duration. The system then maintains temperature during transport, but no specific holding time in hours is published.
Technical specifications
| Model | BlueLine S 12L Complete |
|---|---|
| Manufacturer | delta T GmbH, Germany |
| Manufacturer part number | B110010 |
| Empty product weight | 1.16 kg |
| Outer dimensions | 400 × 300 × 215 mm |
| Inner dimensions | 370 × 263 × 150 mm |
| Compatible elements / system | For the described range: 4 × 22C Plus Accu S 265ml per tray; ordered separately |
| Thermal protection | ≈ 2 hours is cooling time; holding time not specified |
| Sales unit | 1 item |
The brochure identifies B110010 as B 1100 10 uk. The specifications and 4 × 265 ml configuration apply to this version, not S12L Neo with different elements.
Preparing for transport
- Identify the blood component and follow your institution’s approved transport procedure.
- For the described whole-blood setup, condition 22C Plus Accu S 265ml according to the manufacturer’s instructions. Do not substitute other elements solely because they have a similar temperature name.
- Load the prepared payload, close the product and monitor temperature with a separate logger. Opening reduces thermal protection time.
What you receive
One BlueLine S 12L Complete container: bottom, middle section and lid. Temperature elements and additional trays are not included in the base price.
Temperature elements, inner boxes and a temperature logger are not included unless explicitly specified in the agreed configuration. Additional components are ordered separately.
Tell OSELY the required temperature range, payload dimensions and quantity, route duration and ambient conditions to select a suitable configuration.
