MACY-PAN HP1501-85 is a horizontal hard-shell hyperbaric chamber with a transparent sliding door. The 85 version is 220 cm long with an 85 cm cross-sectional dimension. External modules provide air and oxygen for the agreed configuration.
LENGTH220 cm85 version
DIAMETER85 cmmanufacturer designation
PRESSURE1.5 / 1.6 ATAas specified
Key benefits
- Stainless steel and polycarbonate construction.
- Transparent sliding entry door.
- Two-way intercom.
- Internal and external controls.
- Automatic pressure release on power loss.
- Caster-mounted chamber body.
Technical specifications
| Model | HP1501-85 |
|---|---|
| Brand | MACY-PAN |
| Manufacturer | Shanghai Baobang Medical Equipment |
| Construction | Horizontal hard shell |
| User position | Lying |
| Dimensions L × W × H | 220 × 85 × 85 cm |
| Operating absolute pressure | 1.5 / 1.6 ATA — configuration dependent |
| Materials | Stainless steel, polycarbonate |
| Door | Transparent sliding |
| Timer | 0–120 min |
| Communication | Two-way intercom |
| Lighting | LED |
| Door-closed sensor | Yes |
| Oxygen delivery | Via mask / headset |
| Air conditioning | Optional |
Applications and configuration

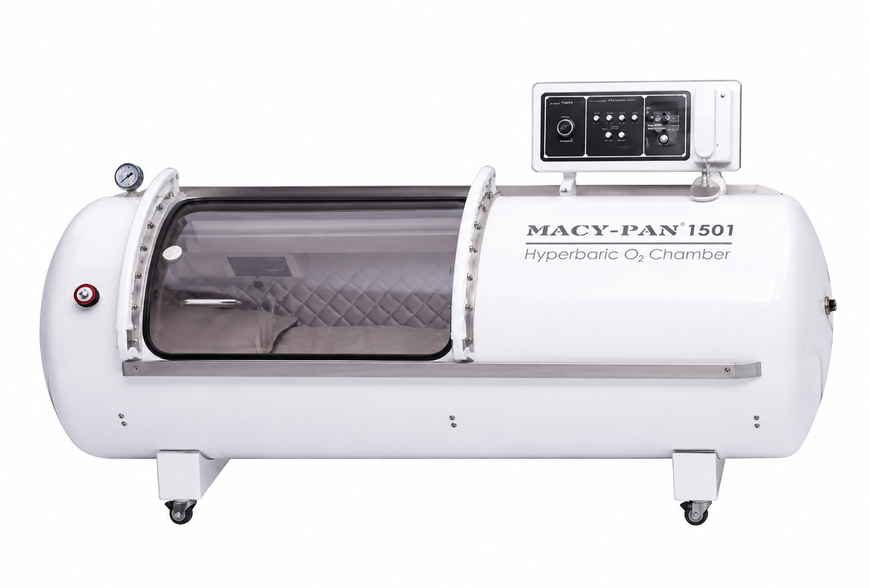

The description and image cover HP1501-85; the 75 and 90 versions differ in size. The image shows the chamber without external equipment. Specify the chamber, compressor, concentrator, dryer, connections and mask; agree the All-in-One option and air conditioning separately. Operating pressure, concentrator output, power supply, weight and accessories depend on the factory revision. ATA denotes absolute pressure. Concentrator outlet oxygen concentration is not the concentration inside the chamber. The 0–120 minute timer is a technical range, not a recommended procedure duration. Follow the documentation for the supplied configuration. Request a quote.
Compare with: MACY-PAN ST801.
