Fresenius 6008 CAREsystem is a hemodialysis and online HighVolumeHDF machine using the 6008 CAREset cassette system. It monitors the extracorporeal circuit and prepares dialysis fluid. Equipment, disposables and installation infrastructure must be specified for the dialysis station.
BLOOD FLOW30–600 mL/minpump range
DIALYSATE TEMPERATURE34–39 °Csetting range
ULTRAFILTRATION0–4000 mL/htechnical range
Key benefits
- OCM monitors dialysis-efficiency parameters during treatment.
- DIASAFEplus provides dialysis-fluid filtration.
- The bibag system uses dry bicarbonate concentrate.
- ONLINEplus supports online hemodiafiltration and substitution-fluid preparation.
- AutoFlow adapts dialysate flow; EcoFlow operates during standby stages.
- The 6008 CAREset combines preconnected bloodlines and automated preparation.
Technical specifications
| Model | Fresenius 6008 CAREsystem |
|---|---|
| Modalities | HD / ONLINE HDF |
| Blood pump range | 30–600 mL/min |
| Dialysis-fluid flow | 0–1000 mL/min, 100 mL/min steps |
| Dialysis-fluid temperature | 34–39 °C |
| Dialysis-fluid conductivity | 12.8–15.7 mS/cm |
| Ultrafiltration range | 0–4000 mL/h |
| Arterial pressure measurement range | −300…+300 mmHg |
| Venous pressure measurement range | −100…+500 mmHg |
| Water inlet pressure | 1.5–6.0 bar |
| Water inlet temperature | 5–30 °C; hot-rinse conditions per instructions |
| Power supply | 100–240 V AC ±10%, 50–60 Hz |
| Dimensions H×W×D | 1680×350×780 mm |
| Base width / depth with canister holder | 520 / 900 mm |
| Approximate weight | 115 kg |
| Filter / bicarbonate | DIASAFEplus / bibag |
| Modules and connectivity | BPM, other monitors and network functions depend on specification |
Applications and configuration

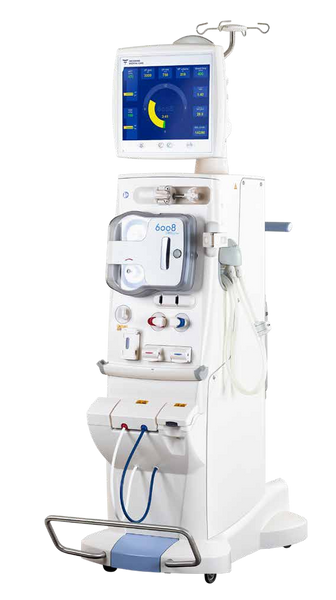

For a dialysis station in a healthcare facility. Requires compatible water treatment, concentrates, drainage, power and scheduled service. The dialyzer, bloodlines / CAREset, fluids, disposables, chair and water-treatment system are not automatically included. Specify BPM/BTM/BVM monitors, Single-Needle, network interfaces and other options according to configuration availability. The photograph illustrates one equipment configuration. Clinical settings are determined by the medical team using the instructions for use. Request a quotation against a complete specification.
Compare with: Fresenius 5008S CorDiax.
