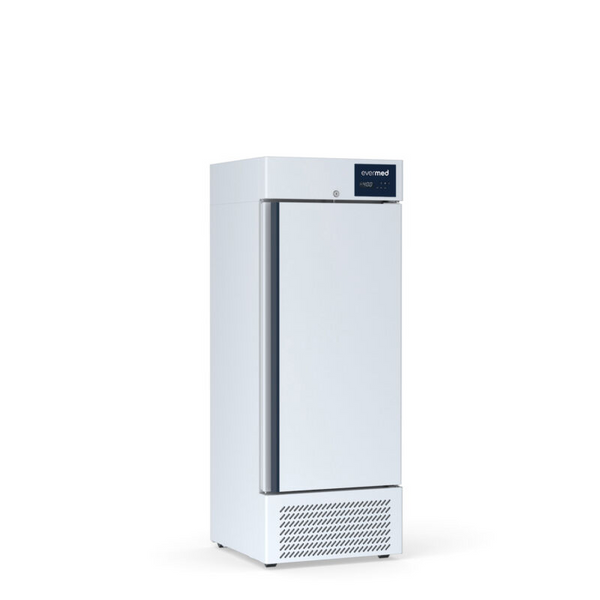

Evermed PDF 270 LITE Low-Temperature Laboratory Freezer (−25…−40 °C, 270 L)
Evermed PDF 270 LITE is an upright low-temperature laboratory freezer for sensitive materials and biological samples within a −25 to −40 °C range.
Intended use
This model belongs to the standard PDF laboratory series and is intended for applications requiring stable low temperature, forced-air circulation, monitoring and alarm functions.
Key features
- forced-air circulation for uniform temperature distribution
- automatic defrost with condensate evaporation
- antibacterial-treated exterior and AISI 304 stainless-steel chamber
- solid door, internal LED lighting and access port for an external temperature probe
Technical specifications
| Operating range | −25…−40 °C |
| Net / gross volume | 270 / 300 L |
| External dimensions (W × D × H) | 600 × 660 × 1620 mm |
| Shelves | 2 |
| Base | 4 castors |
| Power supply | 220–230 V, 1 phase, 50 Hz |
| Climatic conditions | +16…+28 °C |
| Manufacturer code | AGC700L |
Control system
The LITE panel provides an LED display, acoustic and visual alarms, and an NC dry contact for remote alarm signalling.
Important for plasma storage
The standard PDF range is a laboratory series. Where plasma or blood-bank storage requires medical-device status, verify the applicable requirements and the documentation of the supplied configuration; Evermed provides the separate PDF MD range for that use case.
